Asphalt digital thermometer

Main Features

    • Conforms to Test Standard EN 12697-13



Links: Data Sheet

Description

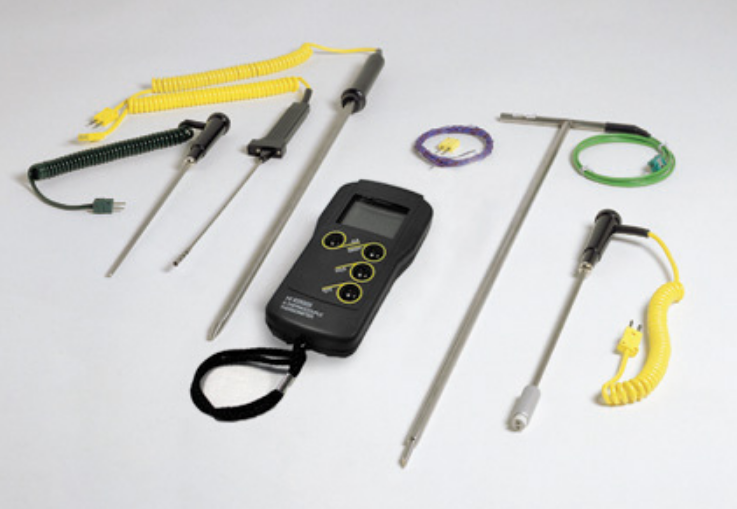

82-D1229 Microprocessor digital thermometer ranges -50 +199 °C and -200 +1350 °C with 0.1 and 1 °C resolution

This digital thermometer can be used for various field and laboratory applications in road and concrete testing. Dual range, high resolution, housed in a rugged ABS case. Memory functions: simply press a button and the meter will recall the highest and lowest temperatures measured in the test cycle. Read both °C and °F. It is supplied without probes that has to be ordered separately conforming to the applications. For asphalt temperature measurements we recommend the following probes:

  • 82-D1229/1 Penetration probe 120 mm long
  • 82-D1229/2 Surface probe
  • 82-D1229/5 Penetration probe 220 mm long
  • 82-D1229/6 T bar probe 650 mm long to BS 594

Technical Specs

  • Ranges:
    a) from -50 to 199.9°C (-58 to 399.9 ° F), resolution 0.1°C
    b) from – 200 to 1350°C (-400 to 2642° F) resolution 1°C
  • Accuracy: ±0.2% full scale
  • Battery life/type: 3×1.5 V/ approx. 1600 hours of continuous use
  • Dimensions: 150x80x36 mm
  • Weight approx.: 235 g
