Main Features
- PReSBOX® produces a prismatic specimen with nominal dimensions of 450 mm (length) x 150 mm (width) x 120 to 185 mm (height).
- Asphalt prisms prepared in the PReSBOX® compactor can be sawn or cored to produce 4-6 prismatic beams or 1-4 cylindrical specimens.
- A single person is needed to operate PReSBOX®
- Produces specimens with excellent air void distribution and particle orientation
- Designed for an easy unlocking of the compaction mould, facilitating an effortless specimen extraction at safe height, handling and user safety.
Description
The unique shearing action of the PReSBOX® closely replicates the conditions under which asphalt is placed in the field and produces specimens with excellent homogeneity and volumetric properties, giving an exceptional measure of workability.
PReSBOX® also provides an accurate measure of the workability (relative effort required for compaction) of Hot Mix Asphalt (HMA) needed in the field to achieve a target void content.
It also features a PC interface for user entry of compaction parameters, and provides a real-time graphic display of data, e.g. specimen height, vertical stress and air voids per cycle.
Technical Specs
- Shearing motion: Electromechanically driven at 4°
- Vertical stress: Pneumatic user defined up to 2 MPa
- Specimen size: 450 x 150 x 120 – 185 mm (l x w x h)
- Integrated specimen extruder
- Specimen Loading: Easy loading with included accessory kit (includes: distribution chute, levelling tool & comb)
- Compaction Frequency: 3.7 cycle/min +/- 16 s/cycle
- Mould hardness: 50 Rockwell C (minimum)
- Platen hardness: 50 Rockwell C (minimum)
- Mould surface: finish smoother than 1.6 µm
- Loading platen size: 448 x 149 mm (l x w)
- Loading platen finish: smoother than 1.6 µm
- Numbers of cycles: user definable (unlimited)
- Air supply: clean dry air supply at minimum 600 kPa
- Size(H x W x D): 1540 x 1765 x 1050 mm
- Weight: 1100 kg
Ordering Information
| 77-PV46A02 | IPC Global PReSBOX – Shearbox Compactor – 208-240V/ 50-60Hz / 1ph. |
Accessories

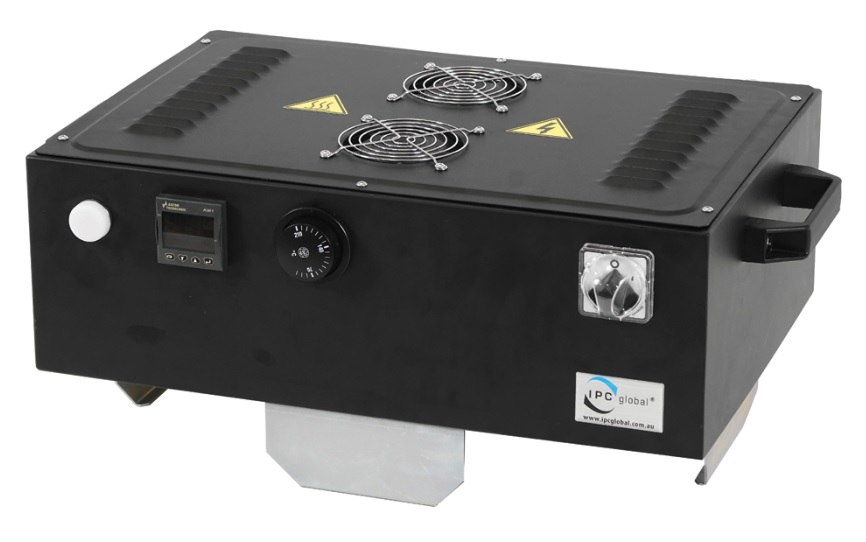

| 77-PV46202 | Heater to pre-heat the box walls. 230V/50-60Hz/1ph |
| 79-PV71102 | Pneumatic Filtration Kit – Wall Mount 12 Bar |
