Description
Centrifuge Binder Extractors are used for the determination of bitumen percentage in bituminous mixtures.
All our models comprise a removable precision-machined rotor bowl housed in a cylindrical aluminium box.
They are driven by an electric motor fit with AC drive (inverter) with the double function of speed control up to 3600 r.p.m. regardless of the frequency (50 or 60 Hz) and electrical braking.
The centrifuge can be set for the automatic speed ramp up to 3600 r.p.m. or to any intermediate speed by the front knob. A digital display monitors the frequency, which is proportional to the speed.
The rotating unit is suspended on the base by four calibrated springs, which assure a perfect stability all over the test. The cover is precisely machined and fit with solvent resistant gasket to avoid leakages.
All models are fit for emergency use, thanks to a secure hand brake system.
Main Features
Two capacities and two versions available:
- Standard 1500 and 3000 g cap. (75-B2212,75-2214; 75-B2312,75-2314)
- Explosion proof 1500 and 3000 g cap. (75-B2222; 75-B2322)
Possible upgrade
The standard models can be upgraded with an electromagnetic system to prevent the opening of the cover during rotation. This option (see code 75-B2210/UP1) is applicable on standard models only and has to be factory installed.
- All centrifuges are supplied complete with 100 filter discs.
- All centrifuges can fit different capacity spare bowls (75-B0022/2 and 75-B0023/2)
The control panel includes:
- Start/Stop button
- Speed control knob
- Digital display
Specifications
- Speed control up to 3600 r.p.m. at 50 or 60 Hz by AC drive (inverter)
- Electric brake
- Stable and silent throughout the test
- Electronic control and digital display
- CE version available with electromagnetic arrangement to prevent the opening of cover during rotation
- Explosion proof option
- Supplied complete with 100 filter discs
- AC drive motor (inverter): 550 W
- Overall dimensions (L x D x H): 539 x 406 x 509 mm
- Weight approx.: 54 kg
Ordering Information
| 75-B2212 | 1500 g cap. digital centrifuge extractor. Speed control up to 3600 r.p.m. 230V, 50-60Hz, 1ph. Pack of 100 filter discs included. |

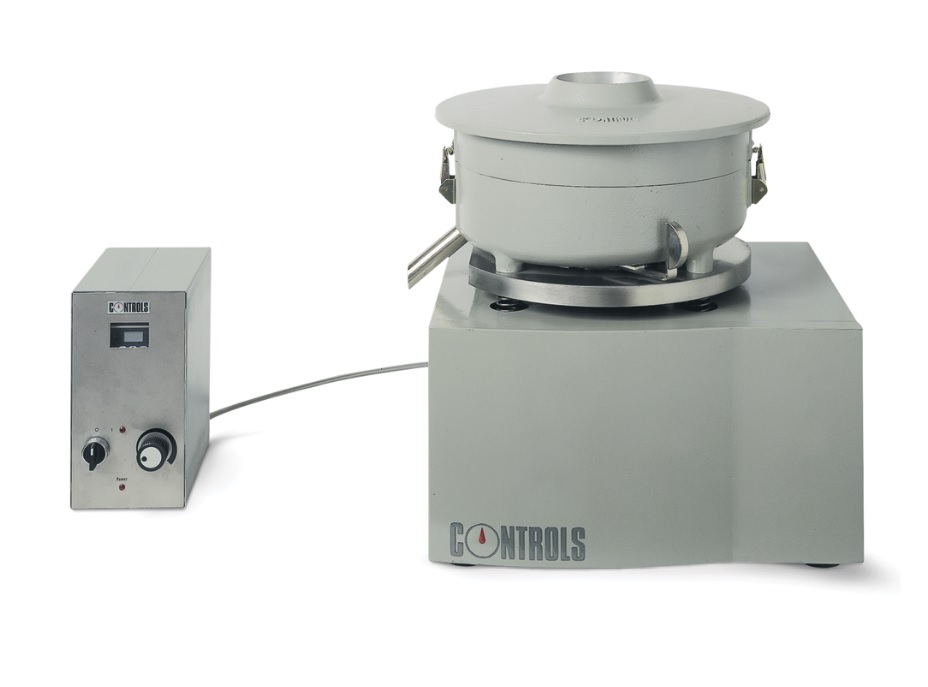

| 75-B2222 | 1500g cap. digital centrifuge extractor, explosionproof version with separate control panel. Speed control up to 3600 r.p.m. 230V, 50-60Hz, 1ph. Pack of 100 filter discs included. |
| 75-B2312 | 3000 g cap. digital centrifuge extractor. Speed control up to 3600 r.p.m. 230V, 50-60Hz, 1ph. Supplied complete with 100 filter discs. |
| 75-B2322 | 3000g cap. digital centrifuge extractor, explosionproof version with separate control panel. Speed control up to 3600 r.p.m. 230V, 50-60Hz, 1ph. Pack of 100 filter discs included. |
Accessories
Filter Discs
| 75-B0022/1 | Filter discs for 1500g cap. centrifuge. Pack of 100 |
| 75-B0023/1 | Filter discs for 3000g cap. centrifuge. Pack of 100 |
Spare Rotating Bowl and Cover
| 75-B0022/2 | Spare rotating bowl and cover |
| 75-B0023/2 | Spare rotating bowl and cover |
Safety Upgrade
| 75-B2210/UP1 | Electronic system to prevent the opening of the cover during rotation. Conforming to CE directive. Suitable for 75-B2212 and 75-B2312 standard models only |
