Permeability Moulds
100mm and 150mm diameter steel moulds complete with aluminium permeability bases with inlets and outlets, porous plates, surcharges and loading plates. The 100mm diameter mould is supplied with a sample confinement clamp. The moulds are designed to facilitate the compaction process by using Geo-Con Type A compaction or CBR mould bases and collars, which are included.
Ordering Information
| 38-T0180.CON | Permeability Mould complete, 100mm dia |
| 38-T0182.CON | Permeability Mould complete, 150mm dia |
Accessories
| 34-T0091.CON | Spacer Disc 61mm |
| 38-T0182/CC.CON | Confining Clamp for 150mm Permeability Mould (optional) |
Mould Preparation
Waxing equipment for the application of a thin layer of paraffin wax to the inside of the moulds, to prevent piping of water between the mould and specimen. The moulds are mounted inside the wooden jig then placed on the roller mill. The roller mill rotates the mould allowing an even and consistent application of the molten wax with use of the waxing funnel in its stand.
Ordering Information
| 38-T0190/1.CON | Roller Mill for waxing |
| 38-T0190.LOC | Waxing Apparatus Wooden Jig |
| 38-T0190/2.LOC | Waxing Funnel |
| 38-T0190/3.CON | Waxing Funnel Stand |
| 55-D1403 | General Purpose Melting Pot |
| 86-D0805.LOC | Paraffin Wax, 1kg |
Specimen Saturation
The assembled permeability mould containing the specimen and surcharge is placed on the presaturation baseplate inside the bell jar, allowing for the application of vacuum to complete the saturation process.
Ordering Information
| 77-B0090.LOC | Bell Jar |
| 77-B0090/1.CON | Presaturation Baseplate |
| 86-D2002.LOC | Vacuum Pump, with regulator and water trap |
| 86-D2064/1.LOC | Vacuum Tubing, 1m |
Specimen Percolation
The constant head/temperature reservoir is designed to keep the water at a constant temperature, whilst maintaining the required hydraulic head. The standpipe assembly four tubes and includes a steel rule graduated in mm, and mounting holes for fixing to a wall, panel, or bracket.
Ordering Information
| 38-T0182/1.CON | Constant Head/Temperature Reservoir |
| 38-T0183.LOC | Standpipe Assembly |
Permeability Bench

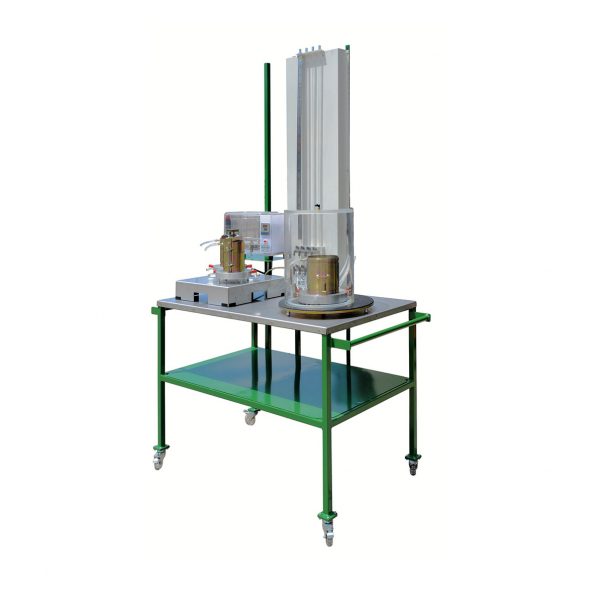

Designed as an integrated unit to accommodate the falling/constant head permeability test system, with facilities for mounting the standpipe assembly and reservoir at adjustable height. Robust construction with stainless steel benchtop, lower shelf, mounted on casters.
Ordering Information
| 38-T0187.CON | Constant/Falling Head Permeability Mobile Bench |
