Constant Temperature Water Bath

The model HWY-501 water bath is an economically priced, quality water bath suitable for smaller bottles, beakers, tubes and cylinders.

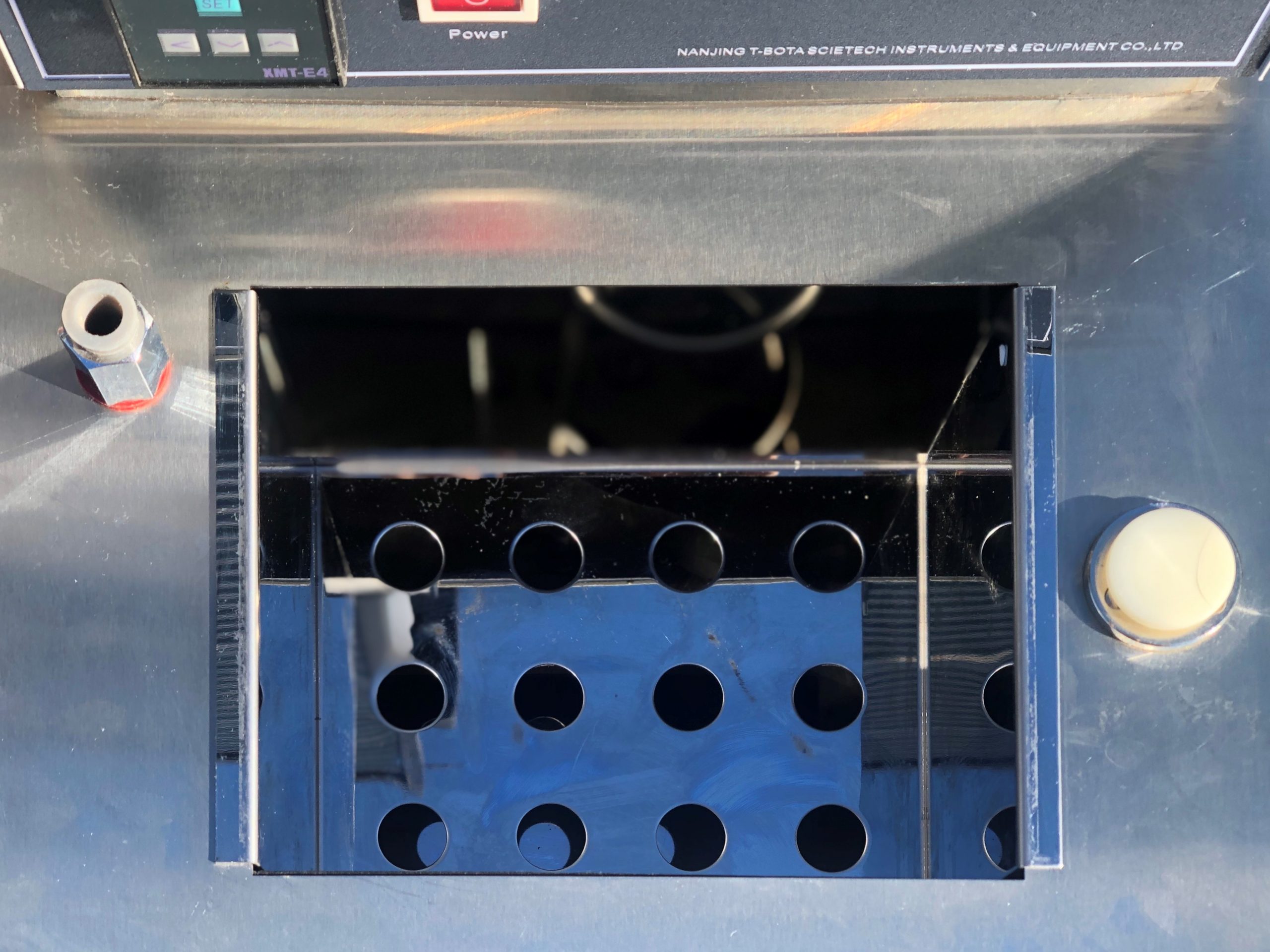

It features circulation to accurately maintain the set temperature between room temperature and 80 deg C.  It has a stainless-steel chamber, lid and upper cover, with a powder coated outer shell. It has a digital temperature controller, removable perforated tray, specimen holder,  facility for a thermometer or probe, and rear drainage valve.



SKU: 76-B0066/TB.GCL Category: Tag:

Main Features:

  • Digital controller
  • In-built circulator with stainless-steel impeller and shaft
  • Stainless-steel chamber
  • Removable perforated stainless-steel tray and holder
  • Temperature monitoring probe facility
  • Drainage valve

Specifications:

  • Power supply: AC 220 V±10%, 50 Hz
  • Volume of water bath: 20 L
  • Top opening: 18 x 14.5cm
  • Tray depth: 11cm
  • Depth without tray = 23cm
  • Temperature control range: Room temperature~80.0 ºC
  • Temperature control accuracy: ±0.1 ºC
  • Quantity of circulated water: ≥4 L/min
  • Ambient temperature: -10 ºC~+35 ºC
  • Relative humidity: ≤85%
  • Maximum power consumption: 1600 W
