DCP - Dynamic Cone Penetrometer 'CAN' Kit (Budget Model DCP)

Description

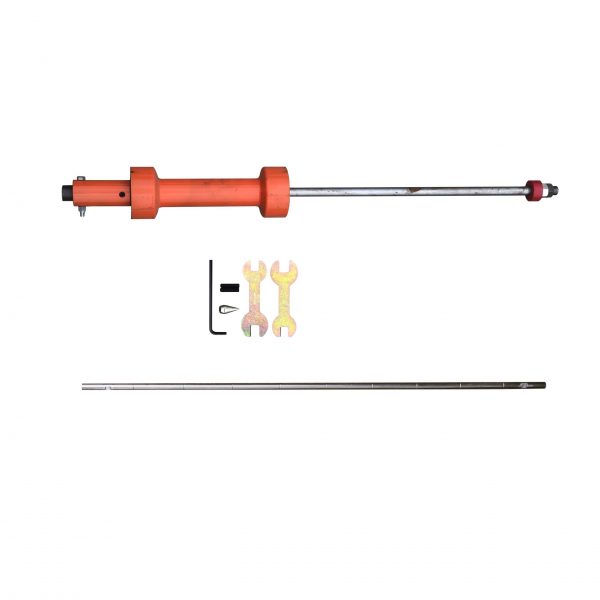

The Geo-Con ‘CAN’ DCP Kit includes:

16-T0012/CAN.CON	1 x Hammer/Anvil Assembly
16-T0012/2.CON	1 x DCP Extension Rod 1m
16-T0012/1.LOC	1 x DCP Cone
16-T0012/A3.LOC	2 x DCP Grub Screw
16-T0012/A4.LOC	1 x DCP Allen Key
16-T0012/S.CON	1 x DCP Spanner (pair)

This design is perfect for the smaller jobs. With the ability to back hammer, a separate extractor is not necessarily required to remove rods from the ground.

Dynamic Cone Penetrometers (DCPs) are used for the determination of resistance of soils to the penetration of a steel cone of 30 degrees angle driven with a 9 kg mass dropping 510mm.

This is Geo-Con Products’ budget DCP, it doesn’t have the unique features of Geo-Con’s (nearly indestructible) Standard Version DCP.

The simplified hammer, the single setting of the top nut together with the basic anvil have enabled Geo-Con to substantially reduce this DCP’s manufacturing costs.

This design has proven itself in the field and we offer it with the full confidence that it can be provided with Geo-Con’s well-known reputation for supplying high quality equipment.
