Description
Used to determine the consistency of mortars and building lime. Two versions available: conforming to EN and ASTM standards, manual and motor operated.
Motor operated models are driven by a motor speed reducer and the number of drops are preset on the digital counter, which stops automatically the machine at the end of the cycle. Supplied complete with flow mould and tamper. EN versions include also the filling hopper.
Hand operated models
64-L0038/A
Hand operated flow table, conforming to EN 459-2 and EN 1015-3
63-L0040
Hand operated flow table, conforming to UNI 7044
63-L0040/A
Hand operated flow table, conforming to ASTM C230
Motorized models
64-L0038/G

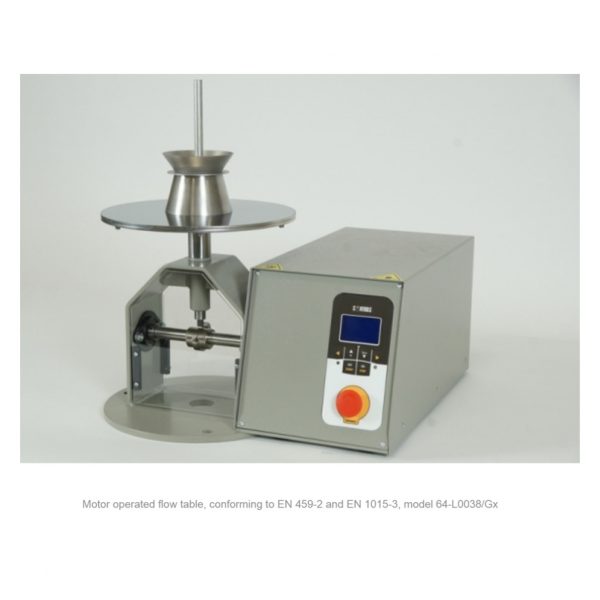

Motor operated flow table, conforming to EN 459-2 and EN 1015-3. 230 V, 50 Hz, 1 ph.
64-L0038/GY
Motor operated flow table, conforming to EN 459-2 and EN 1015-3. 220 V, 60 Hz, 1 ph.
64-L0038/GZ
Motor operated flow table, conforming to EN 459-2 and EN 1015-3. 1100 V, 60 Hz, 1 ph.
63-L0040/G
Motor operated flow table, conforming to ASTM C230. 230 V, 50 Hz, 1 ph.
63-L0040/GY
Motor operated flow table, conforming to ASTM C230. 220 V, 60 Hz, 1 ph.
63-L0040/GZ
Motor operated flow table, conforming to ASTM C230. 110 V, 60 Hz, 1 ph.
Technical Specs
| Models | 64-L0038/A | 64-L0038/G 64-L0038/GY 64-L0038/GZ |
63-L0040 | 63-L0040/A | 63-L0040/G 63-L0040/GY 63-L0040/GZ |
| Power, W | Hand op. | 180 | Hand op. | Hand op. | 180 |
| Table dia. mm | 300 (steel) |
300 (steel) |
300 (steel) |
254 (bronze) |
254 (bronze) |
| Height of drop mm | 10 | 10 | 10 | 12.7 | 12.7 |
| Total mass of movable parts, kg | 4.2 to 4.5 | 4.2 to 4.5 | 4.2 to 4.5 | 4.08±0.05 | 4.08±0.05 |
| Flow mould dim. mm | 100 base 70 top 60 height (stainless steel) |
100 base 70 top 60 height (stainles steel) |
100 base 70 top 60 height (brass) |
101.6 base 69.9 top 50.8 height (brass) |
101.6 base 69.9 top 50.8 height (brass) |
| Dimensions mm (lxpxh) | 421x310x 390 |
50x470x 390 |
420x300x 410 |
288x254x 321 |
677x470x 321 |
| Weight approx. kg | 10 | 40 | 35 | 10 | 40 |
Accessories
63-L0037/1
Flow caliper to EN 459-2 and EN 1015/3
63-L0040/1
Flow caliper to ASTM C230
Spare parts
63-L0038/10
Stainless steel flow mould to EN 459-2, EN 1015/3
63-L0037/10
Brass flow mould to UNI 7044
63-L0040/10
Brass flow mould to ASTM C230
63-L0037/11
Tamper to EN 459-2 and EN 1015-3
63-L0037/12
Filling hopper for 63-L0037/10 and 63-L0038/10 flow moulds
63-L0040/11
Hardwood tamper 12x25x150 mm to ASTM C230
