Four Point Bend Test for UTM, AST Pro and AsphaltQube

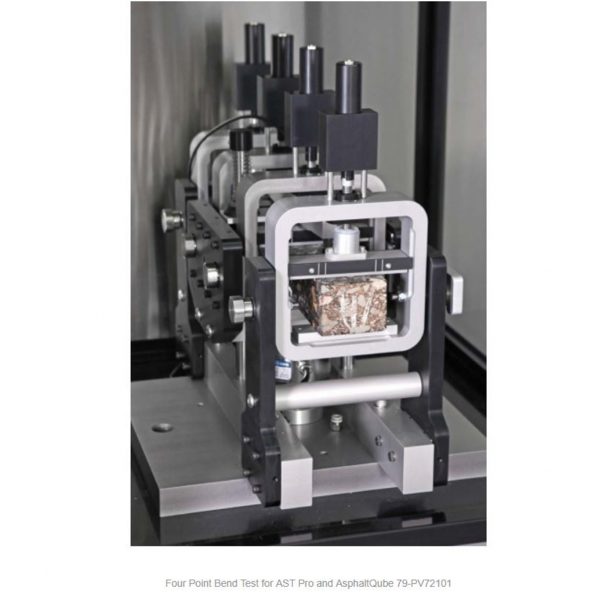

Precision-engineered Four Point Bend jig specifically designed for performing the Four Point Bend test on UTM-30, UTM-130, AsphaltQube and AsphaltQube Pro.



Description

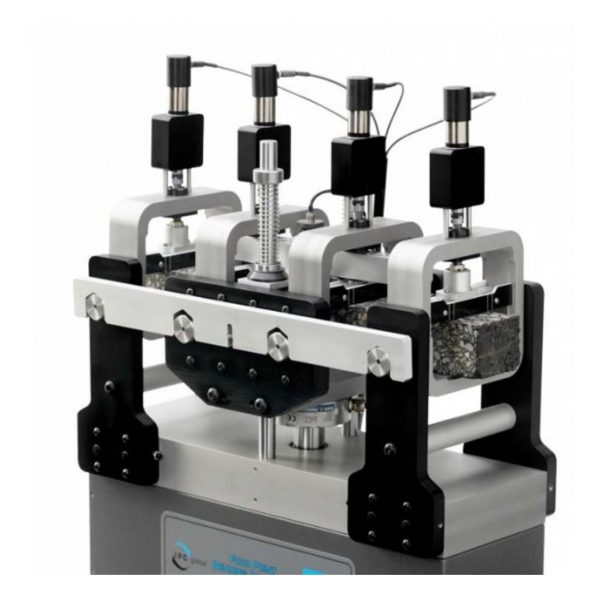

Four Point Bend Jig

  • Innovative “floating straight-edge” on specimen transducer displacement measurement eliminates errors
  • Optional fixed point strain measurement referring from outer pivots
  • Designed to subject an asphalt specimen to four point bending with backlash free rotation and horizontal translation of all load and reaction points
  • Sinusoidal or haversine controlled strain or controlled stress loading
  • Controlled force, motorized specimen clamping
  • Non-linear regression data fitting ensures reliable determination of phase and modulus
  • Can be used with existing UTM or AsphaltQube systems
  • Cost effective solution for high volume testing
  • Specimen laterally positioned by hand using etched lines as visual guide for two specimen sizes, nominally 50 and 63.5 mm in width
  • Vertical clamping of the specimen is achieved by servo-motor driven ball screws, which are operated continuously during the test to take up the compliance of the specimen at the clamping surfaces

Extra Large Four Point Bend Jig

  • Innovative floating on-specimen transducer eliminates errors caused by frame compliance
  • Backlash free rotation and translation on all load and reaction points
  • Controlled force and motorized specimen clamping
  • Specimen rollers with pneumatic lift and lowering for easy loading of specimen
  • Automated self-aligning specimen yokes for easy specimen insertion
  • Specimen roller with pneumatic lift and lowering provide the user with easy test set-up across a range of extra-large specimen sizes
  • Vertical clamping of the specimen is achieved by servo-motor driven ball screws, which are operated continuously during the test to take up the compliance of the specimen at the clamping surfaces

Technical Specifications

  • Specimen size (h x w x l): 70 (max) x 80 (max) x 450 mm (max)
  • Yoke alignment tool for specimen: 50 x 50 x 355.5 mm (h x w x outer span centers), 70 x 70 x 420 mm (h x w x outer span centers)
  • Dimensions (h x w x d): 455 x 460 x 230 mm
  • Weight: 35 kg

Extra Large Four Point Bend Jig

  • Dimensions (h x d x w): 790 x 435 x 890 mm
  • Weight: 210 kg
  • Load capacity: up to 25 kN dynamic
  • Specimen size (l x h x w): 790 (min) x 100-160 x up to 200 mm
  • Yoke alignment tool for specimens: 740 mm (outer span centers), 247 mm (inner span centers)
  • Air supply: clean, dry air at 700 kPa (specimen loading only)

Ordering Information

79-PV70410 Four Point Bend Jig for UTM-30 and UTM-130 for 355.5mm and 420mm (outer span centres) specimens. including Load Cell (+/-15kN w/ (ILC),Yoke Alignment Tool for 355.5 mm (outer span centres) x 50mm x 50mm specimens
79-PV70412 Four Point Bend Jig for UTM-16P for 355.5mm and 420mm (outer span centres) specimens. Including Yoke Alignment Tool for 355.5 mm (outer span centres) x 50mm x 50mm specimens
79-PV70440 XL Four Point Bend Jig for 740 mm (outer span ntres), 247 mm (inner span centres), suitable for M-130XL. includes: -1x XLFour Point Bend Jig (for UTM systems) -1x LVDT (+/-1mm) w/ In-Line Conditioner (ILC) -1x Yoke Alignment Tool
79-PV72111 AsphaltQube/AsphaltQube Pro Four Point Bending Jig for 355.5mm and 420mm (outer span centres) specimens, including Yoke Alignment Tool 355.5 mm (outer span centres) x 50mm x 50mm specimens

Download Brochure (PDF)
