Description

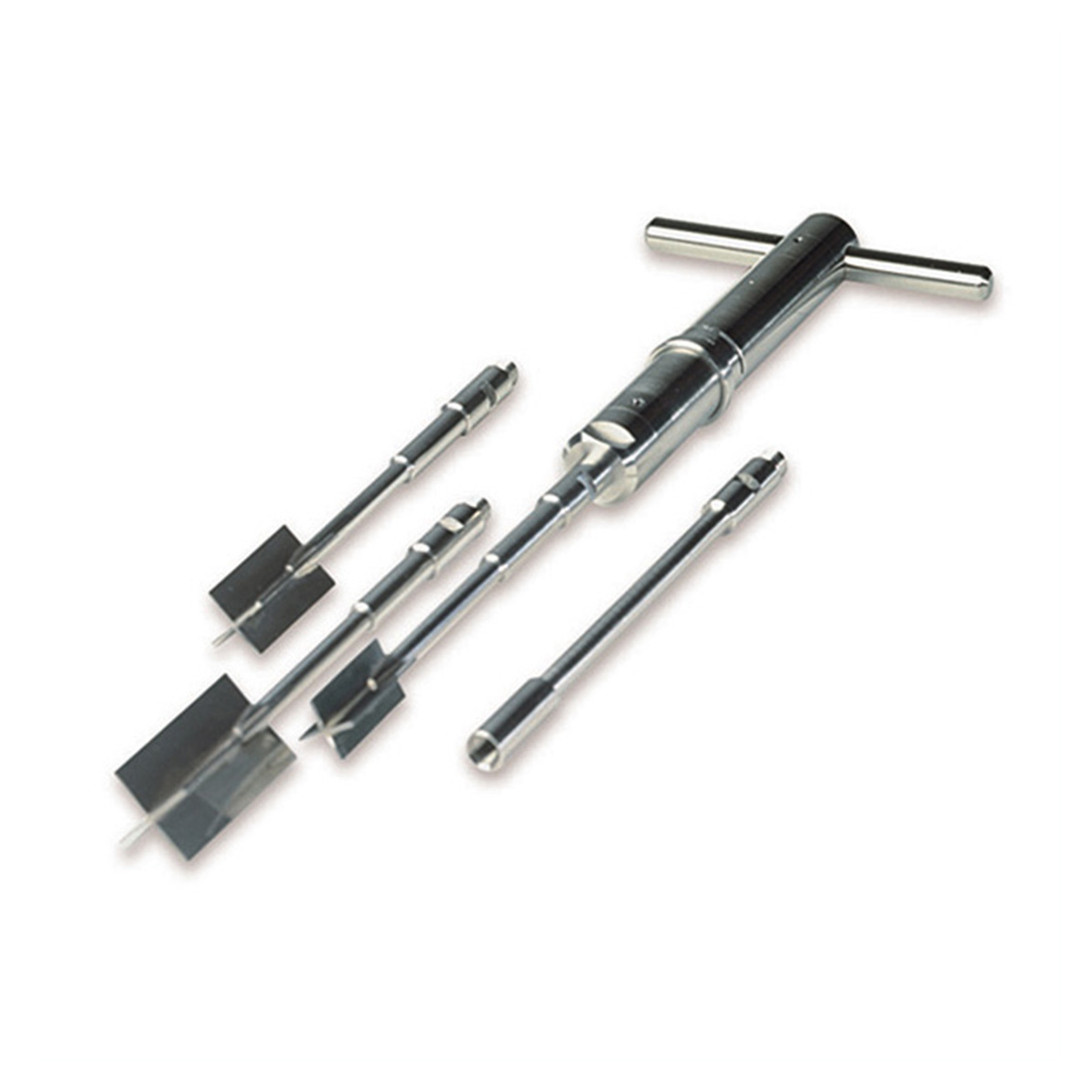

Especially designed to measure the undrained shear strength (CU) of cohesive soils, consists of a cylindrical body with a torsional spring and three interchangeable vanes of different sizes used depending upon the expected strength of the soil. The height/diameter ratio of all vanes is 2. During operation the vane is driven for 5-6 cm into the soil and then turned with the handle. Deep measures (i.e. on the top of undisturbed samples) can be obtained using the extension rod.
All stainless steel construction. Supplied in a plastic case.
Note: This unit is also part of the Field inspection testing kit which also include the 16-T0163 penetrometer described in Pocket penetrometers.
Technical Specs
Vane dimensions (height x dia.): 32×16; 40×20, 50.8×25.4 mm
Measuring range: 0 to 240 kPa (0-24 N/cm2)
Torque value: 3.5 N · m
Extension rod: 153 mm to reach 300 mm depth.
Overall dimensions (assembled): 310×105 mm
Weight approx.: 1.3 kg
Accessories and Spares
Extension rod 500 mm (additional).
Dummy Vane
2 Spanners
Transit case (hard plastic ‘storm’ case)
NATA Calibration Certificate
