Laboratory Core Trimmer, Cut-off and Grinding Machine



Wykeham Farrance has developed a high precision laboratory Core Trimmer for the preparation of rock specimens. The Core Trimmer will quickly and accurately transform irregular core or rock pieces obtained from the field into perfectly machined rock samples.



Category: Tags: , , ,

Main Features

  • HIGH PRECISION: full compliance with the Standards for end surfaces flatness, parallelism and axis perpendicularity.
  • TIME SAVING: thanks to the double blade system.
  • trimming and surface grinding with the same machine without the need to replace the blades between trimming and grinding operations.
  • WIDE RANGE OF SAMPLE PREPARATION: specimens can be obtained from core rock 75 mm diameter x 225 mm length and regular specimens can be obtained from irregular samples of maximum dimension 75mm height x 65mm width x 225 mm length. Includes a clamping system to hold  core and irregular pieces firmly in place.
  • ALL IN ONE SYSTEM: Integrated cooling water system with high performance water recirculation pump.
  • LONG LIFE: corrosion-resistant stainless steel water tank and clamping system.
  • SAFETY DEVICE: protection cover conforming to CE directive with interlocked safety switch which prevents access to the blades when it is in motion. 24 V control front panel preventing electrical hazards related to water.



Description

The laboratory Core Trimmer machine is used for the preparation of rock specimens for strength and deformation testing from block samples or from drill core obtained in the field.

How to prepare the rock core specimen
The laboratory Core trimmer machine allows you to prepare a rock core specimen according to the following procedure:

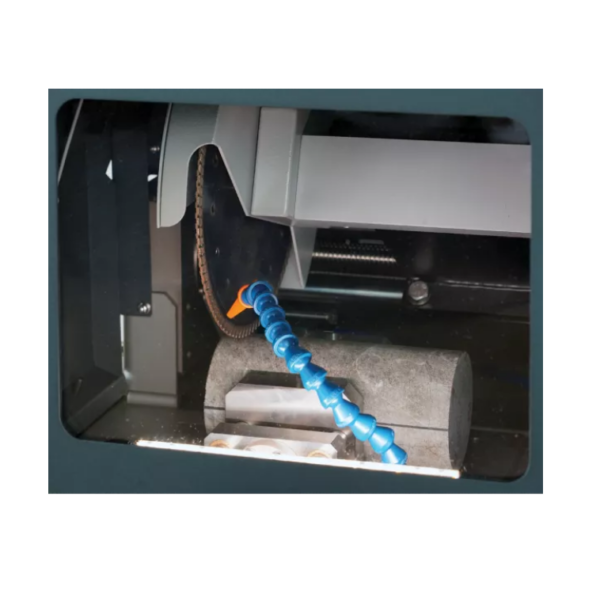

1. Specimen Cutting: Core sample rock is clamped in the jig for holding and feeding during the cutting process. During the cutting phase, water is continuously recirculated for blade cooling and flush cuttings. The precise manual feeding system moves the blade horizontally. Once the specimen is cut, back off the blade and turn off the saw. Unclamp the specimen, reposition and repeat the procedure on the opposite side.

2. Grinding: In order to reach the flatness and parallelism tolerances, a grinding phase is usually required. The rock core specimen is again clamped with the holding jig and is ground using the diamond impregnated grinding wheel mounted on the opposite side of the machine. The specimen ends are typically colored with a waterproof marker, prior to the start of grinding, in order to monitor where material is being removed. Grind each end one at a time. In this phase, the cooling water system is used to cool the specimen and grinding wheel.

Technical Specifications

  • Maximum core rock size: 75 mm diameter x 225 mm length
  • Maximum irregular sample size: 75 mm height x 65 mm width x 225 mm length
  • Blade speed: 3000 rpm
  • Dimensions: 855mm long x 750mm wide x 900mm high
  • 24V Control front panel
  • 230V,50Hz,1ph or 110V,60Hz,1ph or 220V,60Hz,1ph
  • Weight: 170 kg

Downloads

Brochure (PDF)

Ordering Information

32-D0528/A Laboratory core trimmer, cut-off and grinding machine up to 75 mm diameter specimens, 230V, 50Hz, 1ph.

Accessories

32-D0528/A2 Diamond cutting blade. 230 mm dia. x 2,5 mm thickness suitable with machine model 32-D0528/A
32-D0528/A3 Double-faced cup wheel 230 mm dia. x 16 mm thickness suitable for machines series 32-D0528/A
