Light Weight deflectometer

Main Features

  • Confirm to Test Methods: ASTM E2835-11 | TP-BF-StB part 8.3 | ZTV E-StB 09 | ZTV T-StB 95 | ZTV A- StB 97 | RVS 8 | RIL 836
  • Fast and cost-saving: maximum 2 minutes per measuring point
  • No vehicle required
  • Immediate on-site evaluation of test results
  • It can be easily operated and carried by one person only
  • Testing can be achieved in difficult to reach locations

Links: Data Sheet

Categories: , ,

Description

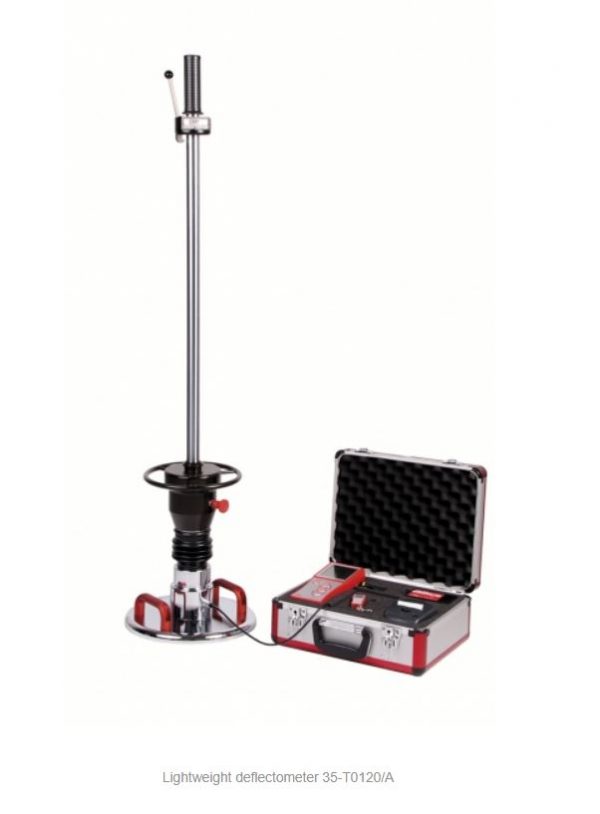

35-T0120/A
Lightweight deflectometer used to determine the bearing capacity and compaction quality of soils and non-cohesive subbases. Printer & PC-Software

The dynamic plate load test performed with the Lightweight deflectometer is used to determine the soil bearing capacity and compaction quality of soils and non-cohesive subbases, as well as for soil improvement applications. Built-in soil layers can easily be tested without load abutment, facilitating quick assessments of test lots even under limited space conditions. The test method is suited to coarse-grain and mixed grain soils with a maximum grain size of 63mm and can be used to determine the dynamic modulus of deformation of soil in the range Evd = 15 to 70 MN/m².

Applications
– Road and railway construction, earth moving
– Quality assurance in canal construction
– Compaction monitoring in pipe trenches and cable ducts
– Testing of pavement bedding
– Testing of foundation backfill
– Quality inspection in boreholes
– Testing of modulus of deformation in line with soil exploration

Technical Specs

Loading mechanism
  • Total weight: 15 kg
  • Drop weight: 10 kg
  • Maximum impact force: 7.07 kN
  • Duration of impact: 17 ms
  • Material: zinc coated/hard-chrome plated steel
Load plate
  • Diameter: 300 x 20 mm
  • Total weight: 15 kg
  • Material: zinc coated steel
Electronic settlement measuring instrument
  • Interfaces: USB, Thermal-Printer, GPS, PC software included
  • Power supply: 4 x R6 batteries
  • Dimensions: 210 x 100 x 45 mm
  • Settlement measuring range: 0.1 to 2.0 mm ± 0.02 mm
  • Measuring range: Evd<225 MN/m2
  • Temperature range: 0 to 40°C
  • Storage capacity of measured data: 500 series

Accessories

35-T0120/A1
Transport cart for easier on-site transport of the Lightweight deflectometer 35-T0120/A between the measuring points
35-T0120/A2

Magnetic base plate for proper positioning of loading unit 35-T0120/A

35-T0120/A5

Carrying case for secure transport of the Lightweight deflectometer 35-T0120/A
