Sand Replacement Apparatus

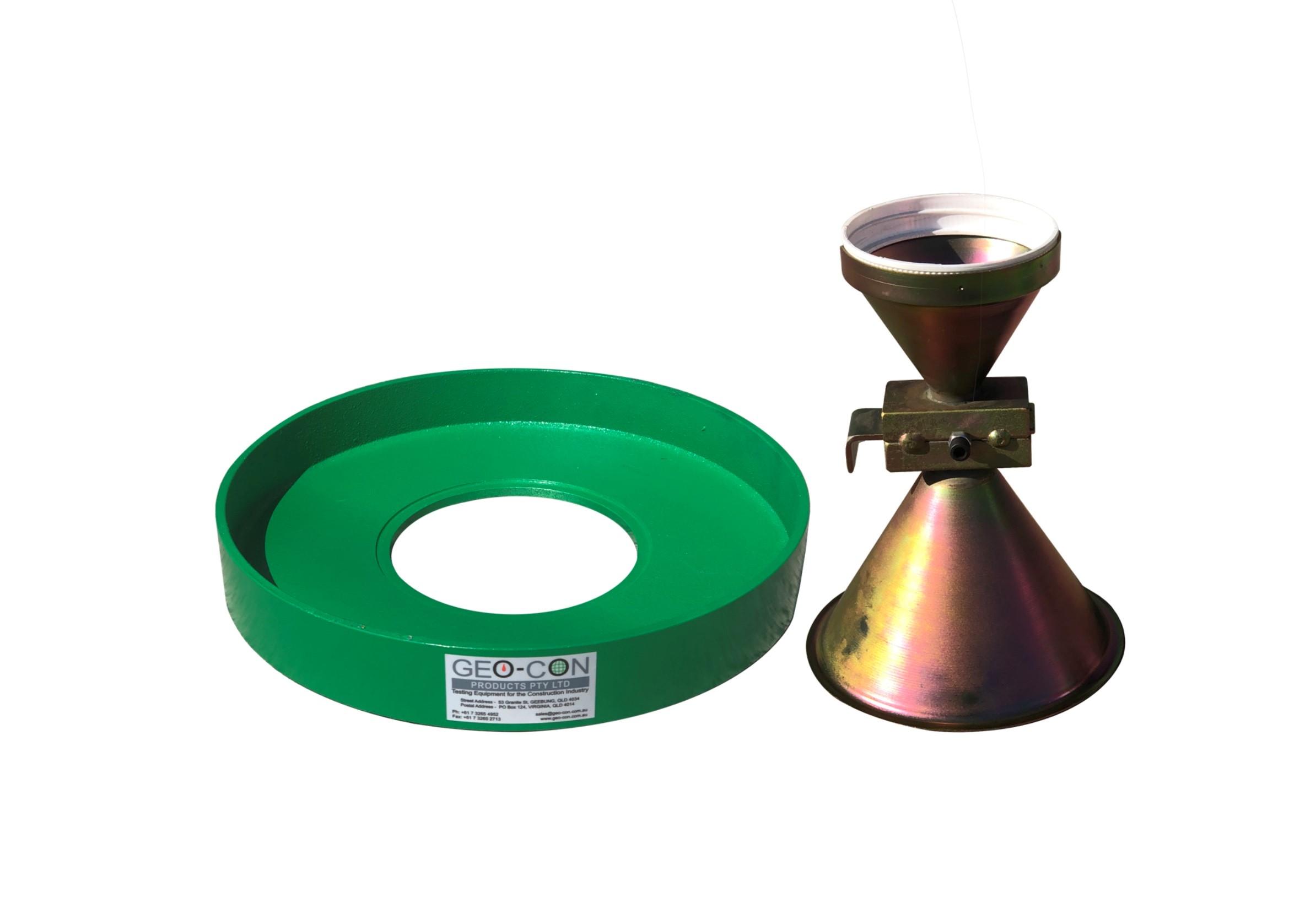

For field density testing by sand replacement method to AS1289.5.3.1.  Geo-Con manufacture robust sand cones, plates, and calibration cylinders in 150mm and 200mm diameter sizes.  The cones feature our unique sliding tap mechanism designed for years of trouble free service.  The top section of the cones are threaded to accept standard 2.5l and 4.5l sand bottles.  The calibration cylinders have standard depths of 150mm and 200mm, and custom depths are also available.



Categories: , , Tag:

Main Features

  • Conforms to Test Method: AS1289.5.3.1
  • Australian made
  • Robust design
  • Smooth and easy operation of the tap
  • Cones accept standard sand bottles
  • Cast aluminium plates
  • Custom depth calibration cylinders available on request

Ordering Information

35-T0125/A1.CON Sand Replacement Cone, 150mm Dia
35-T0126/1.CON Sand Replacement Cone, 200mm Dia
35-T0125/A3.CON Sand Replacement Plate, 150mm Dia
35-T0126/3.CON Sand Replacement Plate, 200mm Dia
35-T0122/150.CON Sand Calibration Cylinder, 150mm Dia x 150mm
35-T0123/200.CON Sand Calibration Cylinder, 200mm Dia x 200mm
35-T0130/2B.LOC Sand Replacement bottle 4.5 lt
35-T0130/2C.LOC Sand Replacement Bottle Cap
35-T0127.LOC Sand (Field Density) Nominal 1mm, 20kg bag



35-T0140.KIT   Field Density Tool Kit, comprising:

35-T0140/1.LOC Tool Box
35-T0140/2.LOC Steel Rule
35-T0140/3.LOC Club Hammer
35-T0140/4.LOC Cold Chisel
35-T0140/5.LOC Wood Chisel
35-T0140/6.LOC Paint Brush
35-T0140/7.LOC Ladle
