Description

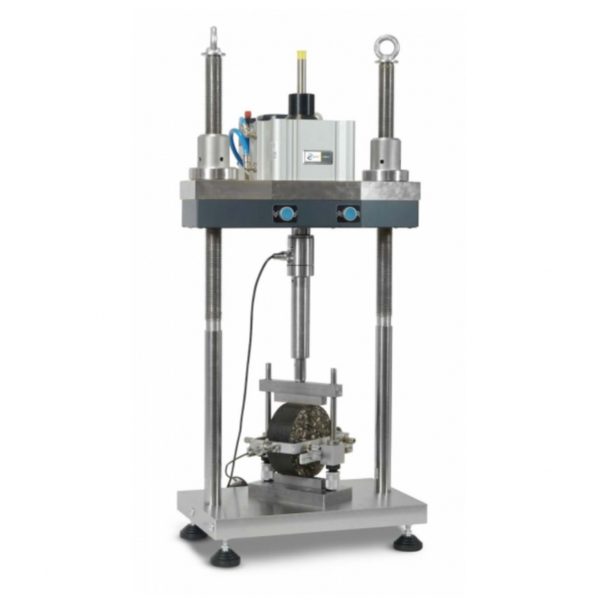

IPC Global’s UTM-16P Servo-pneumatic testing systems are precision engineered to accomplish your toughest research challenges.
Designed and built to IPC Global’s highest standard for Civil Engineering laboratories, these systems deliver superior reliability and accuracy with proficient performance of tension, compression and dynamic loading analysis on all types of materials.
Available in two versions: standard and with motorized crosshead for quickly and easy test set-up.
The heart of all these products is the IMACS, Multi-Axis Digital Controller and Data Acquisition System which delivers leading edge performance, un-parallel real-time computer control a flexible data acquisition, together with the powerful and professional UTS Software draws upon over 30 years of advanced materials testing experience. Used and relied upon by hundreds of researchers, you can buy with confidence knowing your test results having immediate credibility.
IPC Global’s Hydraulic Power Supply (HPS), part of the machine, has been designed with integrated VFD (variable speed) technology assuring energy saving and noise reduction. HPS features return line filtration, remote starting and control via virtual pendant, air cooling and indication for low oil, over temperature and dirty filter. The system provides electronically adjustable oil pressure allowing greater control and safety. Oil accumulators further improve control accuracy while the high-performance filters ensure long life system protection and reduced maintenance costs.
The UTM-16P Servo-pneumatic testing systems can be used as part of your Superpave performance based testing program.
79-PV70A02
IPC Global UTM-16P, Servo-pneumatic universal testing system 16 kN cap., including Dual Axis Control and Data Acquisition System IMACS, 16 kN Servo-pneumatic actuator assembly, with high-performance servo-valve and built-in LVDT (+/- 15 mm) with In-Line Conditioner (ILC), loading frame, pneumatic reservoir assembly, load cell (+/- 20 kN) with ILC.
230 V, 50-60 Hz, 1 ph
79-PV70A12
IPC Global UTM-EM, Servo-pneumatic universal testing system 16 kN cap., complete with motorized crosshead, including Dual Axis Control and Data Acquisition System IMACS, 16 kN Servo-electromechanic actuator assembly, with high performance sevo-valve and built-in LVDT (+/- 15 mm) with In-Line Conditioner (ILC), loading frame, load cell (+/- 20 kN) with ILC.
230 V, 50-60 Hz, 1 ph
Technical Specs
- High stiffness frame
- Load capacity: 16 kN
- Load cell: +/- 20 kN capacity
- Max frequency: 30 Hz
- Double effect servo-pneumatic actuator, 30 mm stroke
- Actuator with 30 mm in-built displacement transducer
- Vertical space: 650 mm
- Space between columns: 339 mm
- Dimensions (w x d x h): 480 x 300 x 1200 mm
- Weight (approx.): 200 kg
Accessories
Environmental chambers for UTM-16P
Using a high quality mechanical refrigeration system, enable users to analyse materials’ properties at real-life working temperatures for extended periods. Designed specifically to fully conform with all the main ASTM, AASHTO, EN and AS reference Standards for determining the mechanical performance of asphalt mixtures.
79-PV70E02
Environmental chamber for UTM-16P with working temperatures from -25 to +60° C.
Variable speed: 110, 220 or 230 V, 50-60 Hz, 1 ph
Note: this unit is required to perform all tests.
Temperature measurement kit
79-PV70116
Temperature measurement kit (-50 to +100° C) including two probes
