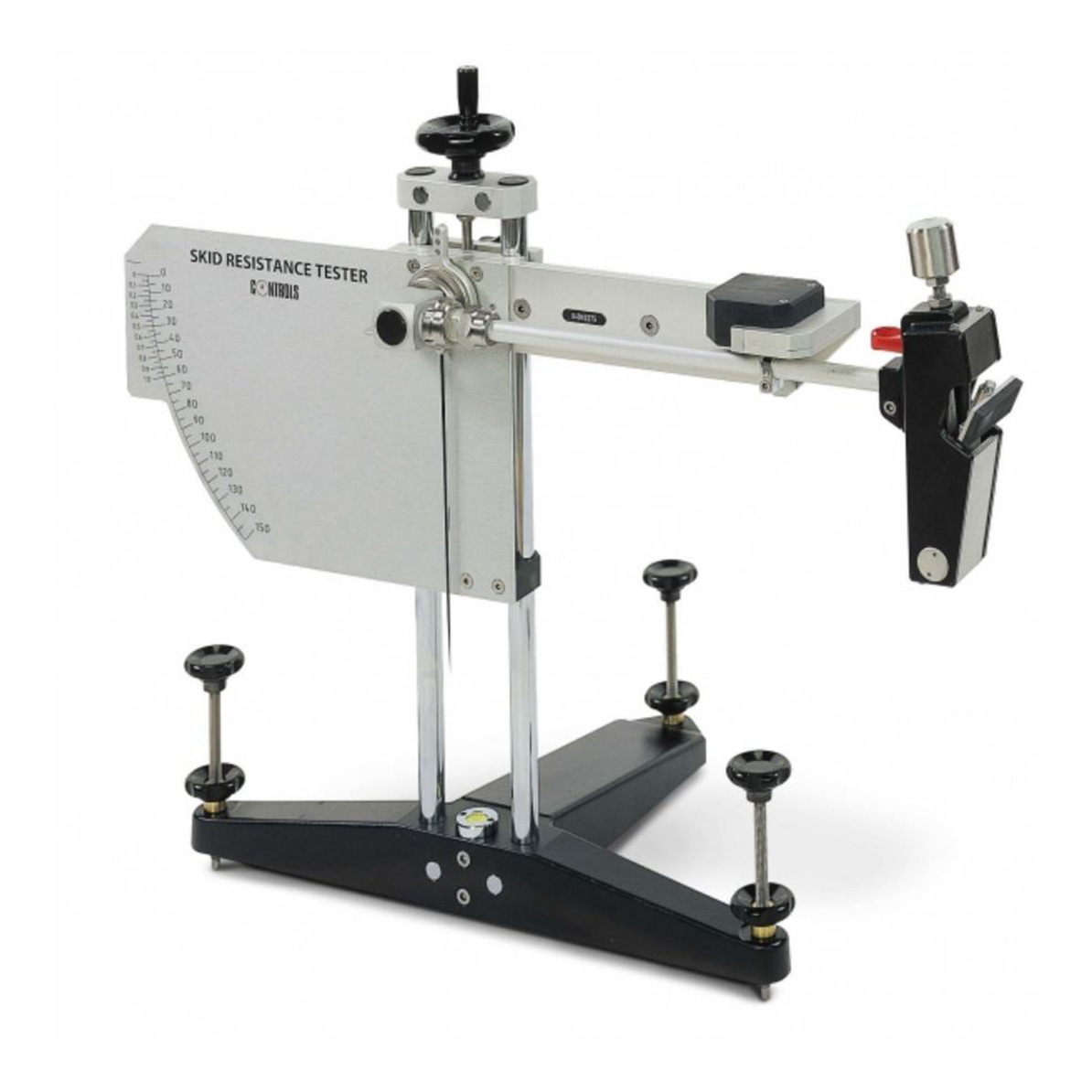

Skid resistance and friction tester

Main Features

  • Conforms to Test Standard EN 1341 | EN 1342 | EN 1338 | EN 1097-8 | ASTM E303 | EN 13036-4
  • New low friction release mechanism of the pendulum arm for better accuracy
  • Extremely light pointer, for high precision results.
  • Slider lifting system integrated in the pendulum foot that guarantees reliable adjustment operations
  • Stiff and stout twin column structure
  • Easy and reliable height adjusting system
  • Integrated additional scale for tests on PSV specimens

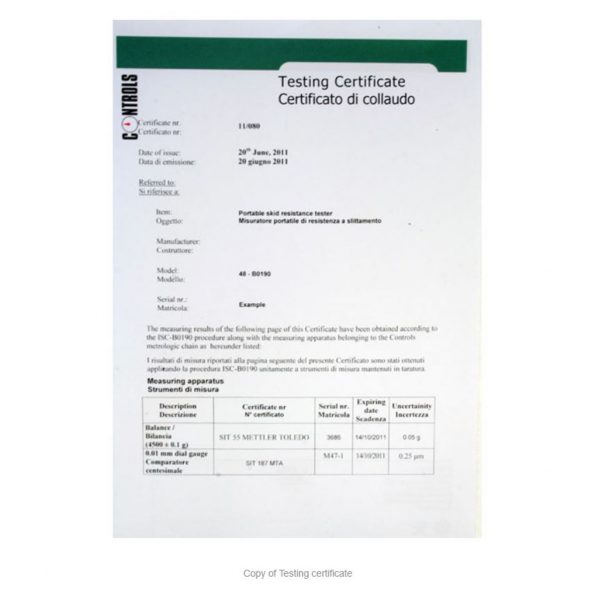

  • Complete with calibration certificate to EN 1097-8 or ASTM E303

Links: Data Sheet

SKU: 48-PV0190 Category: Tags: ,

Description

48-PV0190/ASTM

Skid resistance and friction test set (Skid tester) conforming to ASTM E303, including additional scale for PSV, thermometer, wash bottle tool set for machine assembly, rule, carrying case and traceable certificate of conformity to ASTM E303.
Rubber sliders not included, to be ordered separately.
48-PV0190/EN

Skid resistance and friction test set (Skid tester) conforming to EN 1097-8, EN 13036-4, including additional scale for PSV, thermometer, wash bottle, tool set for machine assembly, rule, carrying case and traceable certificate of conformity to EN 1097-8 & EN 13036-4.
Rubber sliders not included, to be ordered separately

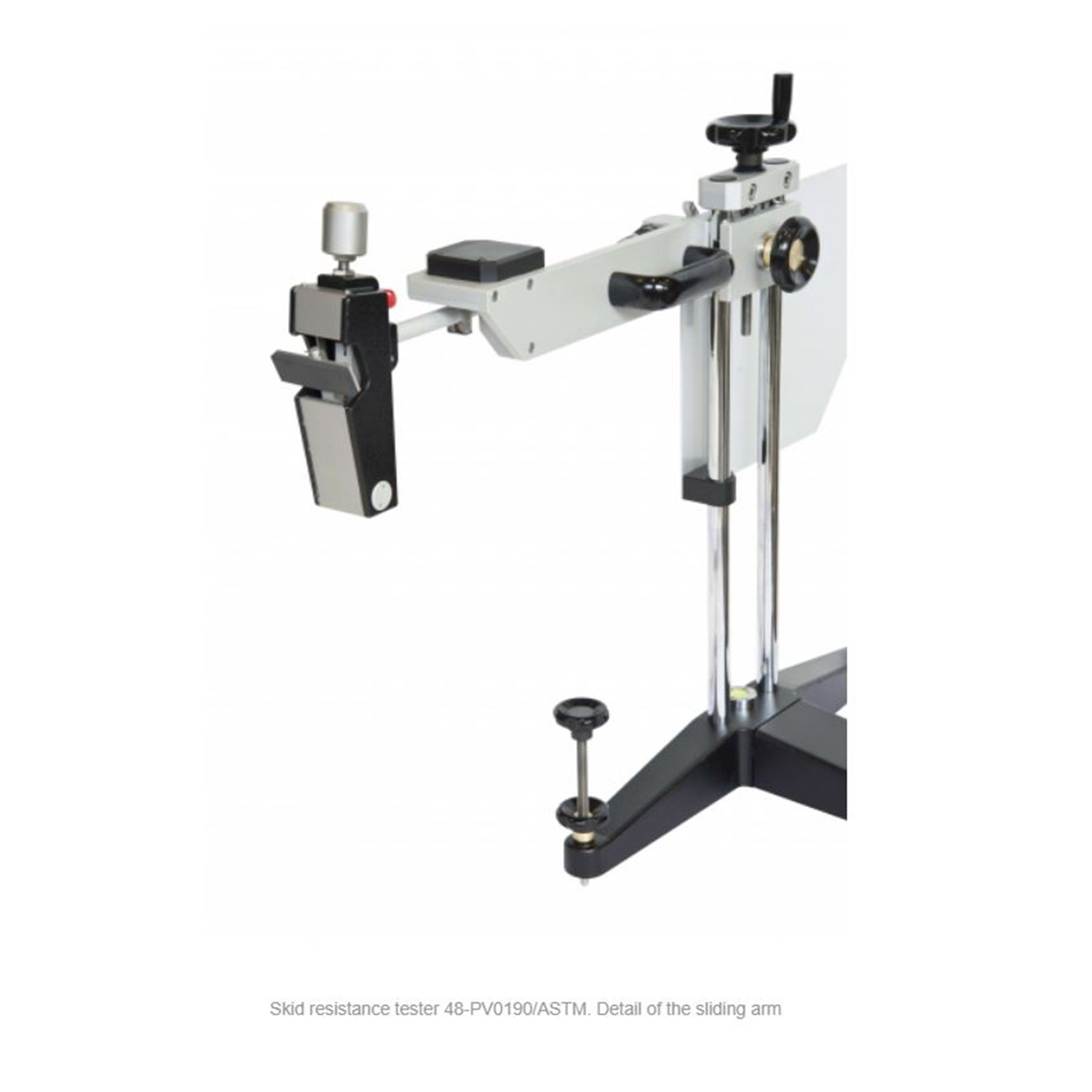

Used for the measurement of surface friction properties, the apparatus is suitable for both side and laboratory applications and for Polished Stone Value (PSV) using curved specimens from accelerated polishing test with the Accelerated Polishing machine (see link to other product below) conforming to EN 1097-8. It can also be used for testing Paving Stones (EN 1341, EN 1342) and Paving Blocks (EN 1338). The apparatus, originally developed at the Transport and Research Laboratory, U.K., consists of an adjustable pendulum arm, and a spring-loaded rubber slider (see accessories) mounted on the end of the arm. During operation the pendulum is raised and then allowed to swing freely, allowing the edge of the rubber slider to skid across the surface of the road or sample. Two versions available:

  • 48-PV0190/ASTM: conforming to ASTM E303 standard and
  • 48-PV0190/EN: conforming to EN 1097-8 and all other mentioned EN standards

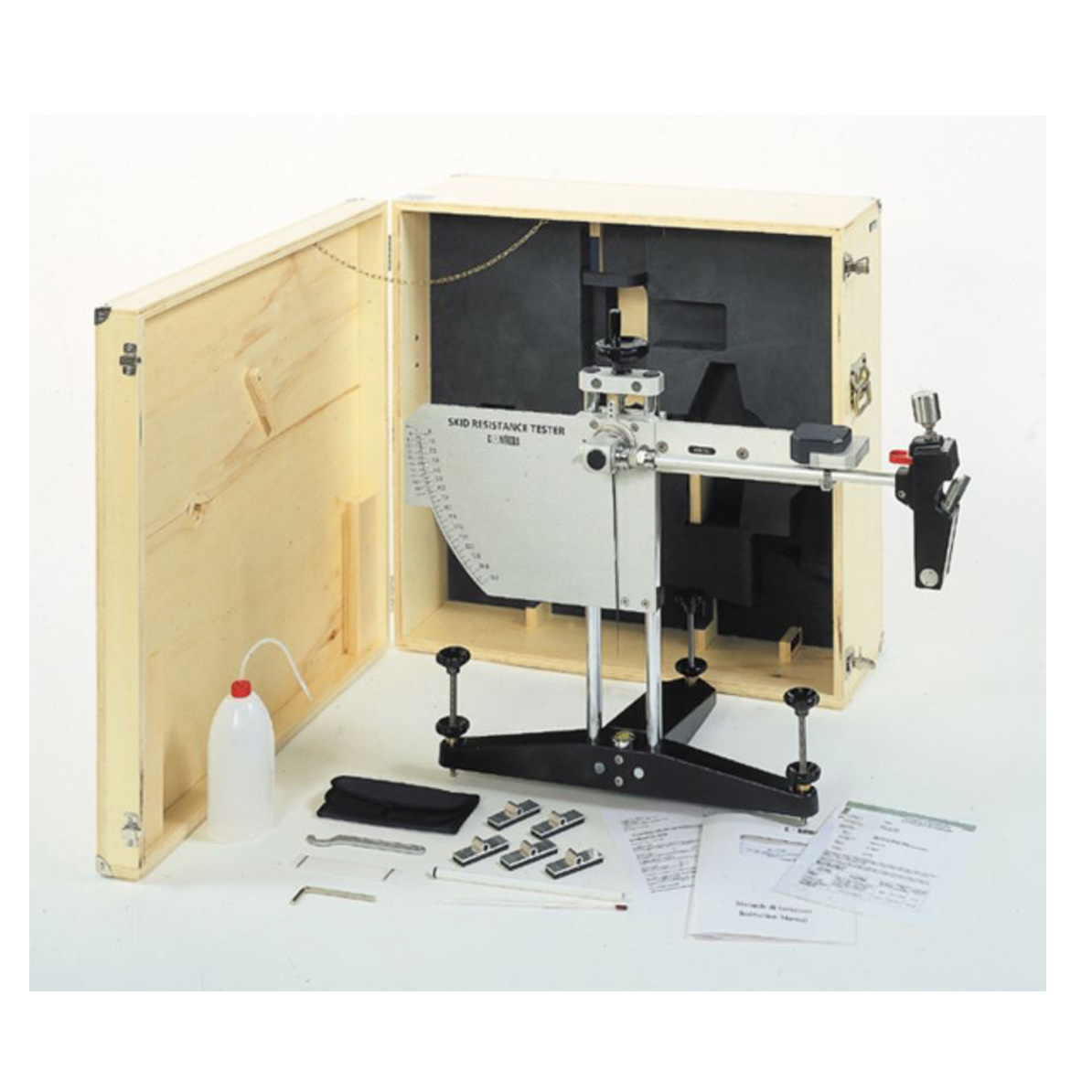

The pendulum is supplied complete with:

  • Additional scale for tests on Polished Stone Value specimens
  • Thermometer 0 to 220°C for surface temperature measurement
  • Washing bottle, 1 l cap. for surface wetting
  • Tool set with case for machine assembly
  • Rule for sliding length verification
  • Carrying case
  • Traceable certificate of conformity to EN 1097-8 o ASTM E303

Technical Specs

  • Case dimensions: 790x760x320 mm
  • Weight approx. including case: 34 kg

Accessories

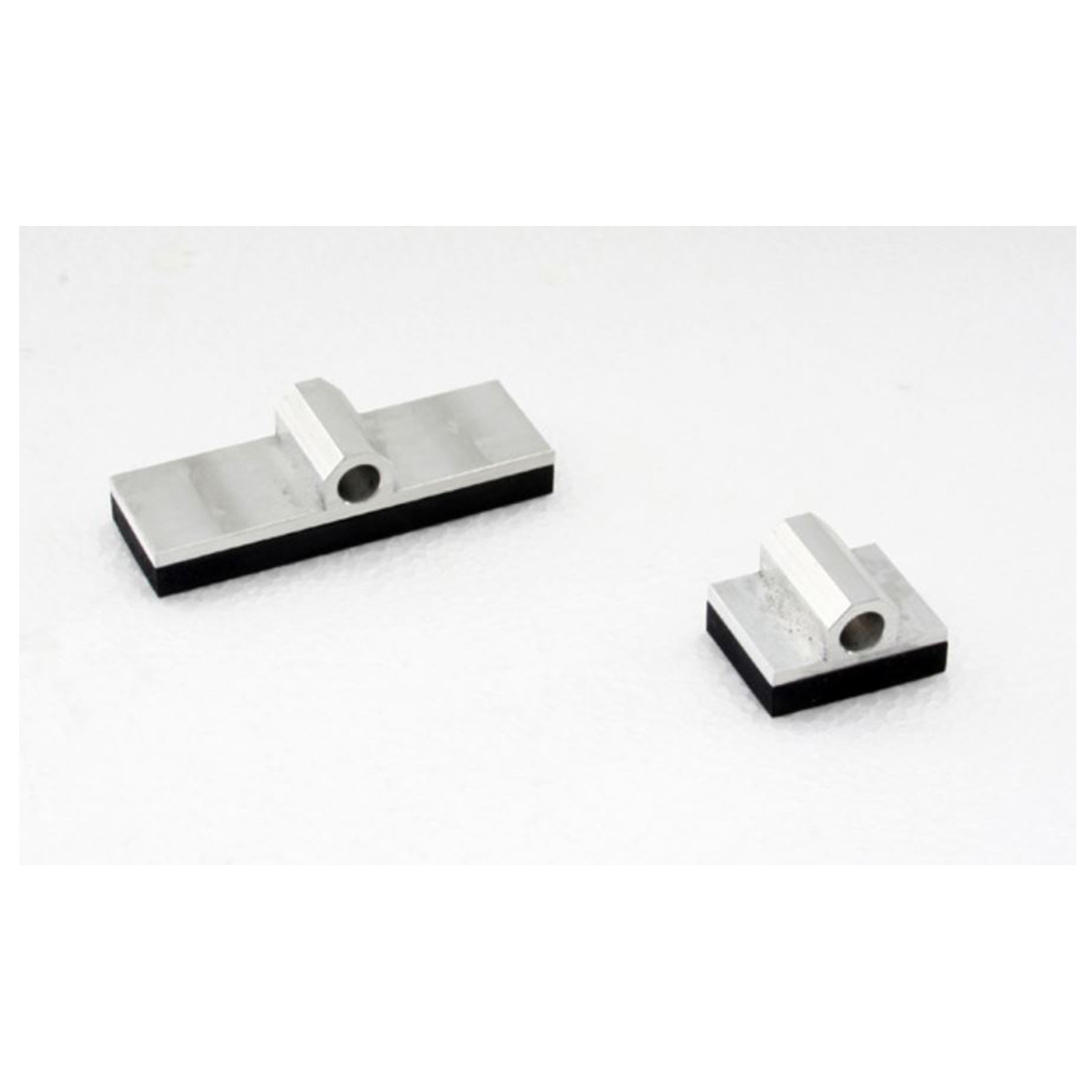

Spare Rubber Sliders

48-PV0190/1

Mounted rubber slider, TRL rubber, 32 mm width for Polished Stone value test (PSV laboratory).Complete with conformity certificate.

48-PV0190/2

Mounted rubber slider, TRL rubber, 76 mm width for site use. Complete with conformity certificate.

48-PV0190/6
Mounted rubber slider, 4S rubber, 32 mm width

48-PV0190/7

Mounted rubber slider, 4S rubber, 76 mm width

Base plates

48-PV0190/4

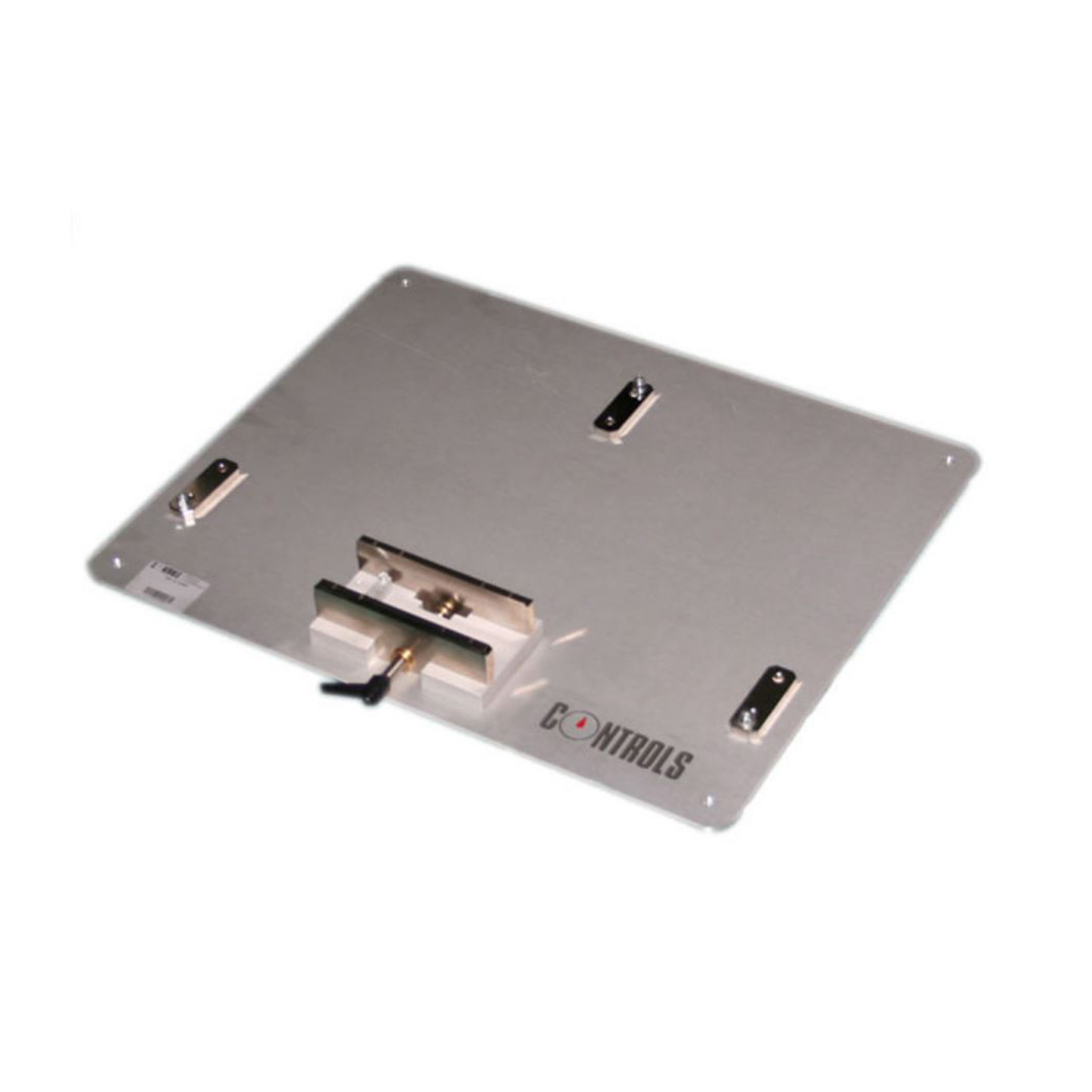

Metal base plate to clamp the Polishes Stone Value specimen.

48-PV0190/5

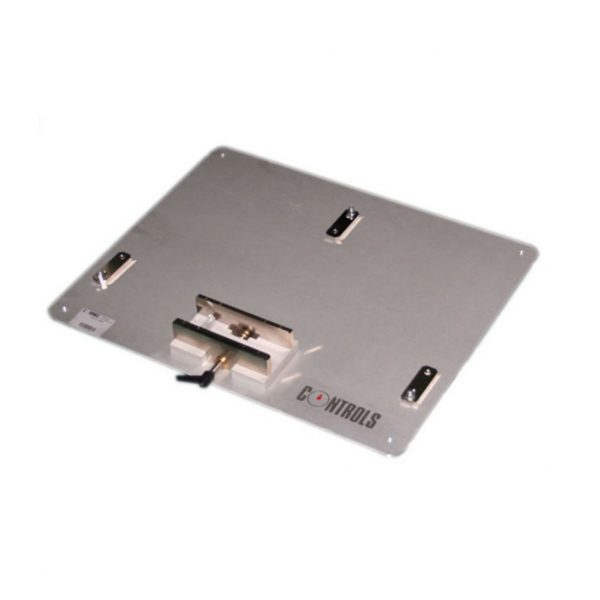

Metal base plate for testing surface friction properties of Natural stones (EN 1341, EN 1342) and Paving blocks (EN 1338).
