Description

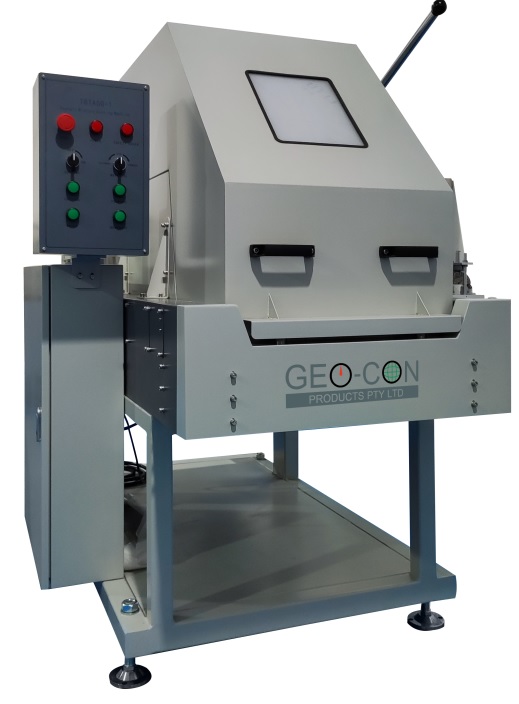

This machine is designed to provide the rigidity and stability necessary to obtain precise specimens for laboratory use. The cutting process is automatically controlled via the electronic controller. Fitted with a dual blade cutting system to allow a variety of cutting widths from 35 to 150mm, using the blade spacers provided.
The machine features a fully sealed safety and noise reduction enclosure. Supplied complete with clamps for beams and 100mm dia. cylinders, sludge tank and water pump.
Main Features
- Rigid rust proof frame
- High precision transmission system to ensure cutting accuracy
- Double saw blade design with adjustable blade feeding speed
- Fully sealed safety and noise reduction cover
- Automatic cutting process
- Count down timer to prevent machine idling after cutting
- Water filter/tank system for sludge collection
- Supplied with 2 diamond saw blades

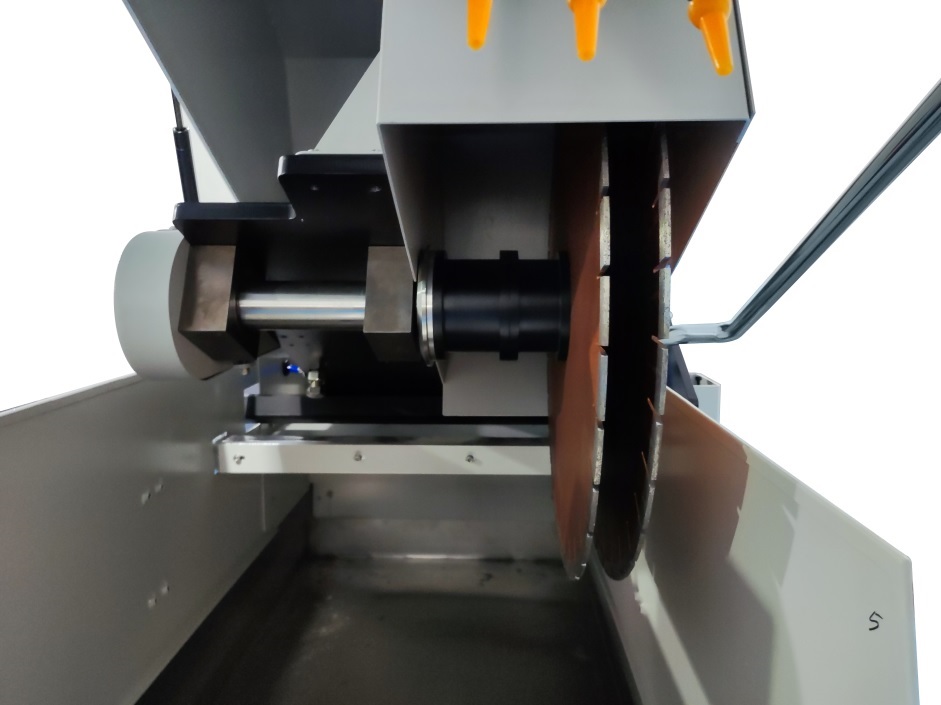

- Supplied with spacers 35mm, 50mm, 65mm, to adjust the blade cutting width (custom sizes available)

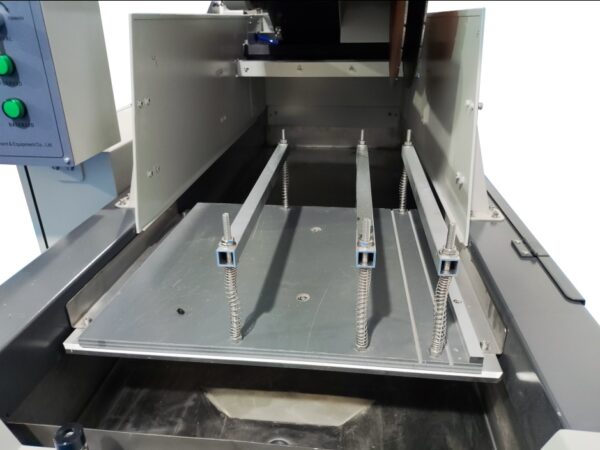

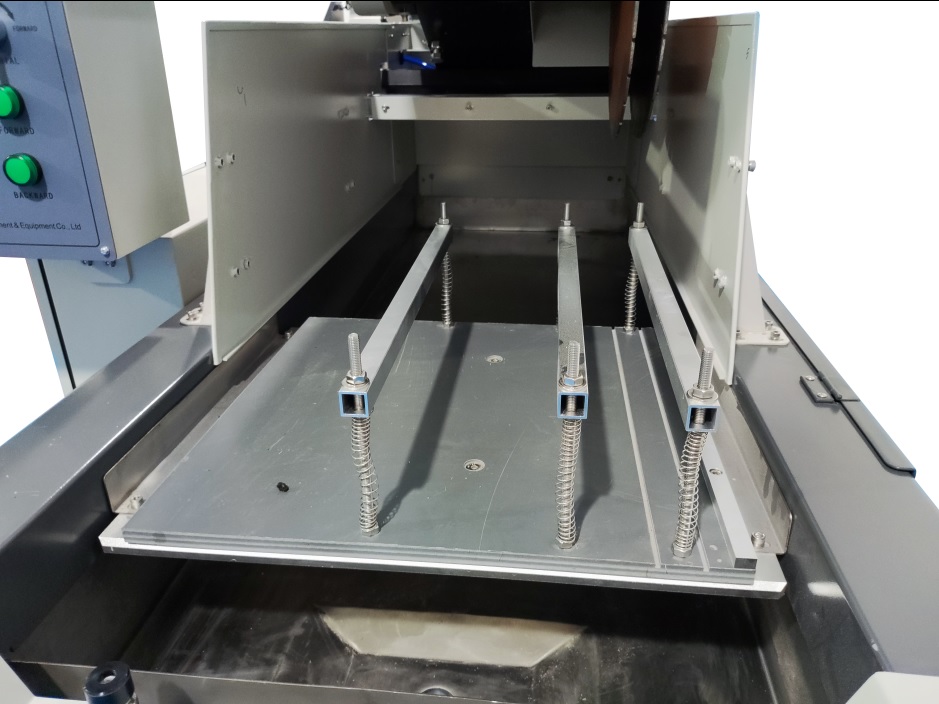

- Supplied with clamps for slabs, beams and 100mm dia cylinders
Specifications
| Blade rotating speed | 3000 rpm |
| Blade diameter | 500mm |
| Maximum width of cut | 150mm between blades |
| Maximum depth of cut | 150mm |
| Cutting Accuracy | 0.15 ~ 0.2mm |
| Motor waterproof grade | IP65 |
| Working temp & humidity | 5-35degC, ≤ 85% RH |
| Power Supply | 380V, 50Hz, 3ph |
Ordering Information
| 77-B47101.TBT | Asphalt Cutting Saw |
