Description

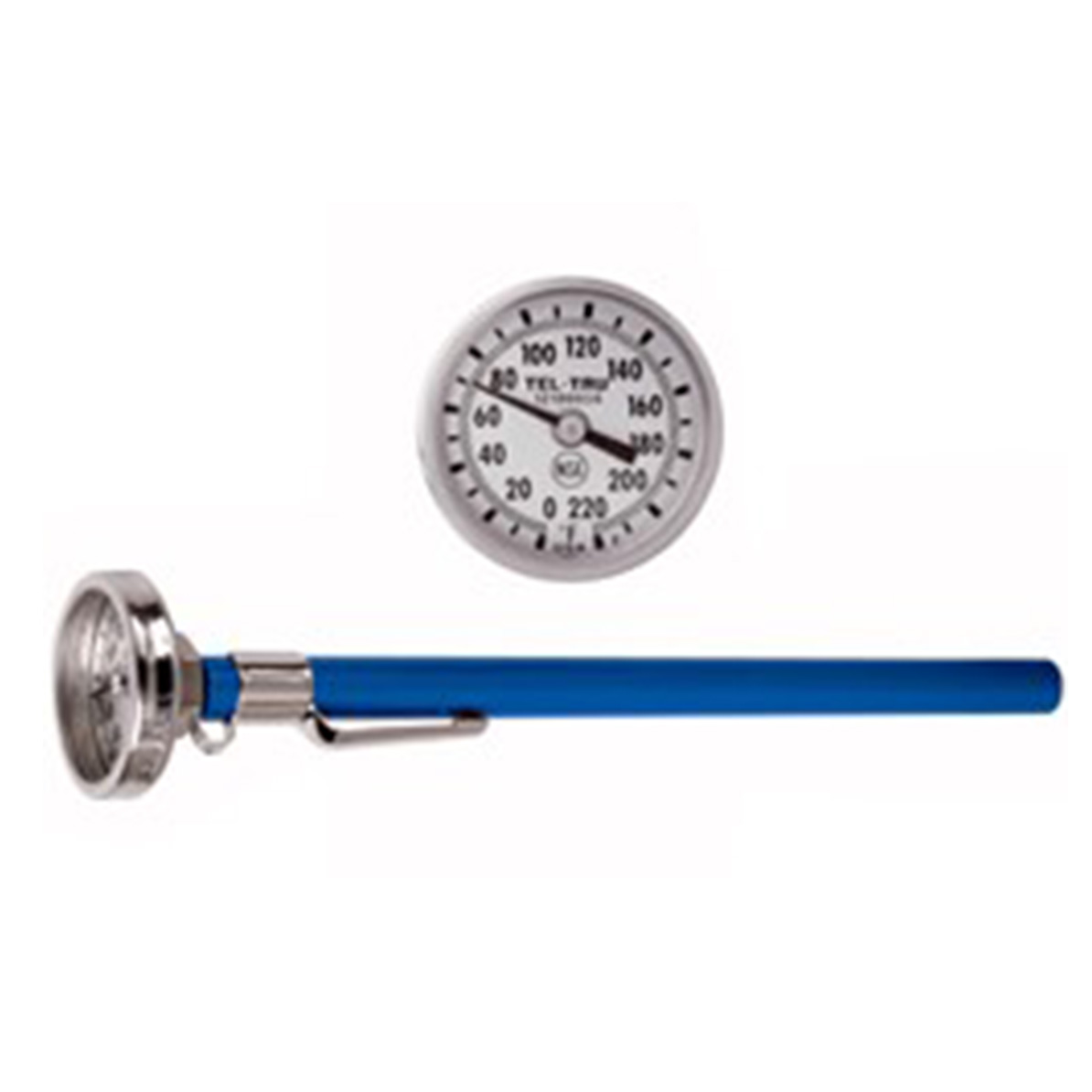

1″ Testing and Spot Checking Bimetal Thermometers: Pocket sized thermometers used by inspectors, service and maintenance personnel, and technicians for general checking in food service, refrigeration, air conditioning, hot asphalt and food processing applications. These models are often modified for OEMs to use in limited space situations.
Temperature Ranges Available on Request:
Technical Specs
- Stem Length: 5″ (127mm)
- Stem Diameter: .150″
- Connection: PT-50 model plain bushing is standard. PT-50R, AD10R and AD44R recal nut is standard.
- External Reset: PT50R, AD10R, AD44R and MT39R friction nut design for easy calibration.
- Construction: 304 stainless steel external parts. Welded construction. Corrosion resistant to most chemicals.
- Hermetic Seal: Per ASME B40.3 dustproof and leakproof.
- Dial: Anodized aluminium with large black numbers and graduations.
- Lens: AD10R and AD44R models polycarbonate lens is standard. PT50 and PT50R models polycarbonate lens is standard up to 300°F (150°C) and glass lens over 300°F (150°C).
- Bimetal Coil: Helix coil is silicone coated on ranges below 500°F for vibration dampening and to maximize heat transfer and response time.
- Accuracy: ±1% full span per ASME B40.3 Grade A.
- Over Temperature Limits: Up to 250°F 100%; 250°F to 550°F, 50%; 550°F to 1000°F, continuous use up to 800°F, intermittent use over 800°F.
- Pocket sheath: Standard on 5″ PT50R, AD10R, and AD44R.
- NSF® certified configurations offered.
