Description

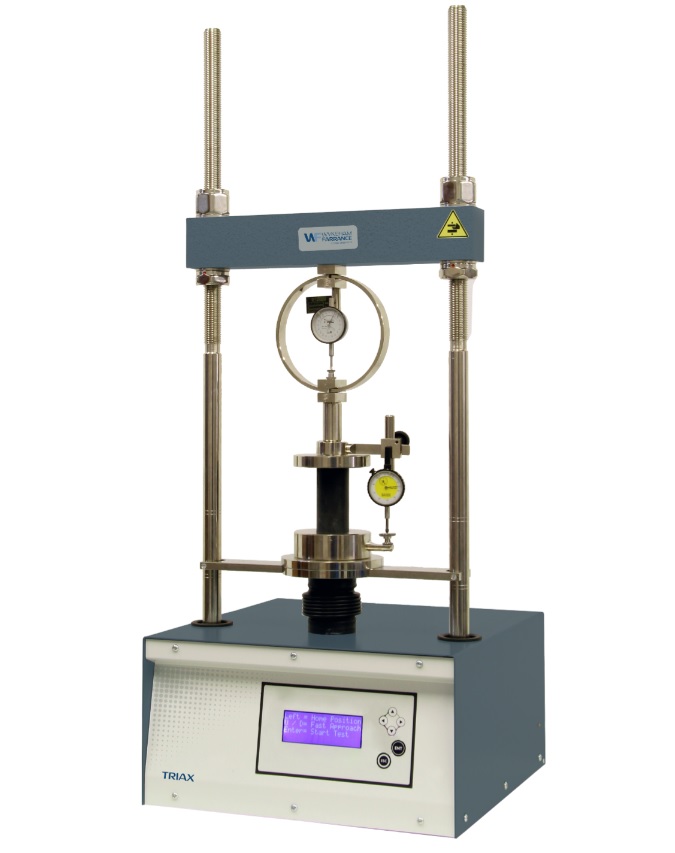

WYKEHAM FARRANCE’s electro-mechanical TRIAX – triaxial machine – has been designed specifically for triaxial applications and is ideal for commercial laboratories that need a versatile machine capable of performing a wide range of tests.
The load frame is built around a robust twin column structure, ensuring extremely high rigidity up to 50 kN.
When the frame is used in PC control mode all the main functions (speed fast/slow, direction up/down, stop) can be remotely managed by PC via a set of commands in ASCII format, using RS 232 port.
In manual mode, the user-friendly keyboard on the front panel is used to control all the frame’s functions, including a rapid approach facility that reduces test set-up time. For efficient use the last settings are automatically recalled after switch on.
The frame is equipped with micro switches that prevent over-travel problems. The panel and display are protected from water and dust by a waterproof membrane.
This triaxial load frame, without built-in data acquisition, requires external data acquisition system (see our GEODATALOG’s).
The frame has been designed for soil testing labs conducting UU (unconsolidated undrained), CU (consolidated undrained) and CD (consolidated drained) triaxial tests but it can also be used, due to its large range of speeds, to perform unconfined and others.
A complete range of parts and accessories is available to configure this machine for any typical triaxial soil testing application.
Main Features
- Ideal solution for commercial laboratories: a machine to perform high quality triaxial tests in addition to unconfined and general purpose compression tests.
- Designed for soil testing laboratories to perform UU, CU and CD triaxial tests on samples from 38 to 70 mm dia.
- Maximum load frame capacity: 50 kN.
-
Maximum testing load depending on the selected test speed (variable from 35 to 7 kN). The choice of the opportune load cell capacity shall take into account this value.
- Speed range from 0.00001 to 50.8 mm/min.
- Large High-contrast 4 x 20-character display and 6-keys membrane keyboard.
- Maximum sample diameter (for triaxial testing): 70 mm.
Specifications
| Model | 28-WF4001 |
| Maximum sample diameter, mm | 70 |
| Minimum testing speed, mm/min | 0.00001 |
| Maximum testing speed, mm/min | 50.8 |
| Maximum load testing, kN | from 35 to 7 * |
| Minimum vertical clearance, mm | 390 |
| Maximum vertical clearance, mm | 725 |
| Horizontal clearance, mm | 380 |
| Platen diameter, mm | 158 |
| Platen travel, mm | 100 |
| Dimensions, mm ( h x w x d) (approx.) | 1215 x 500x 495 |
| Power, W | 600 |
| Weight, kg (approx.) | 90 |
Ordering Information
| 28-WF4001 | TRIAX Triaxial load frame, 230-110V/50-60Hz/1ph |
