Uniaxial Fatigue (S-VECD) Test for UTM, AST Pro, AsphaltQube, AMPT Pro and AMPTQube

Main Features

  • Conforms to Test Standards: EN 12697-26 Annex D | AASHTO TP107/S-VECD | EN 12697-26 E
  • Self-aligning couplings for true axial alignment
  • 25 kN capacity
  • Specimen platens 150 mm dia., 50 mm thickness
  • Invar rods provide low thermal contraction for accurate displacement measurement over the full temperature gradient
  • Optional specimen alignment stand
  • Threaded rods to safely support specimen and fixture after fracture

Links: Brochure

Categories: , Tag:

Description

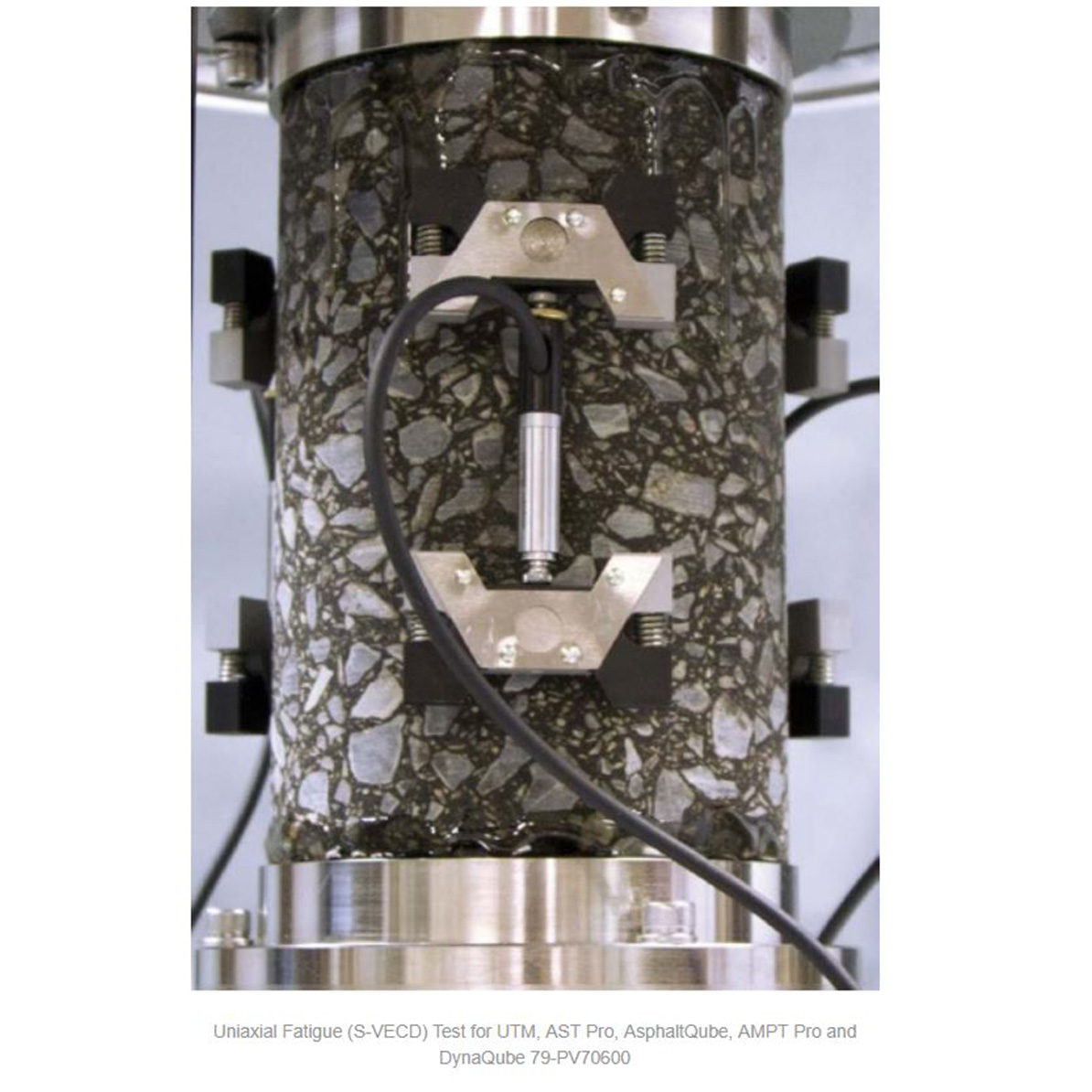

79-PV70600
Uniaxial Fatigue (S-VECD) tension kit to AASHTO TP107 / S-VECD for UTM-30 and UTM-130; to EN 12697-26D and EN 12697-26E for all UTM Systems.

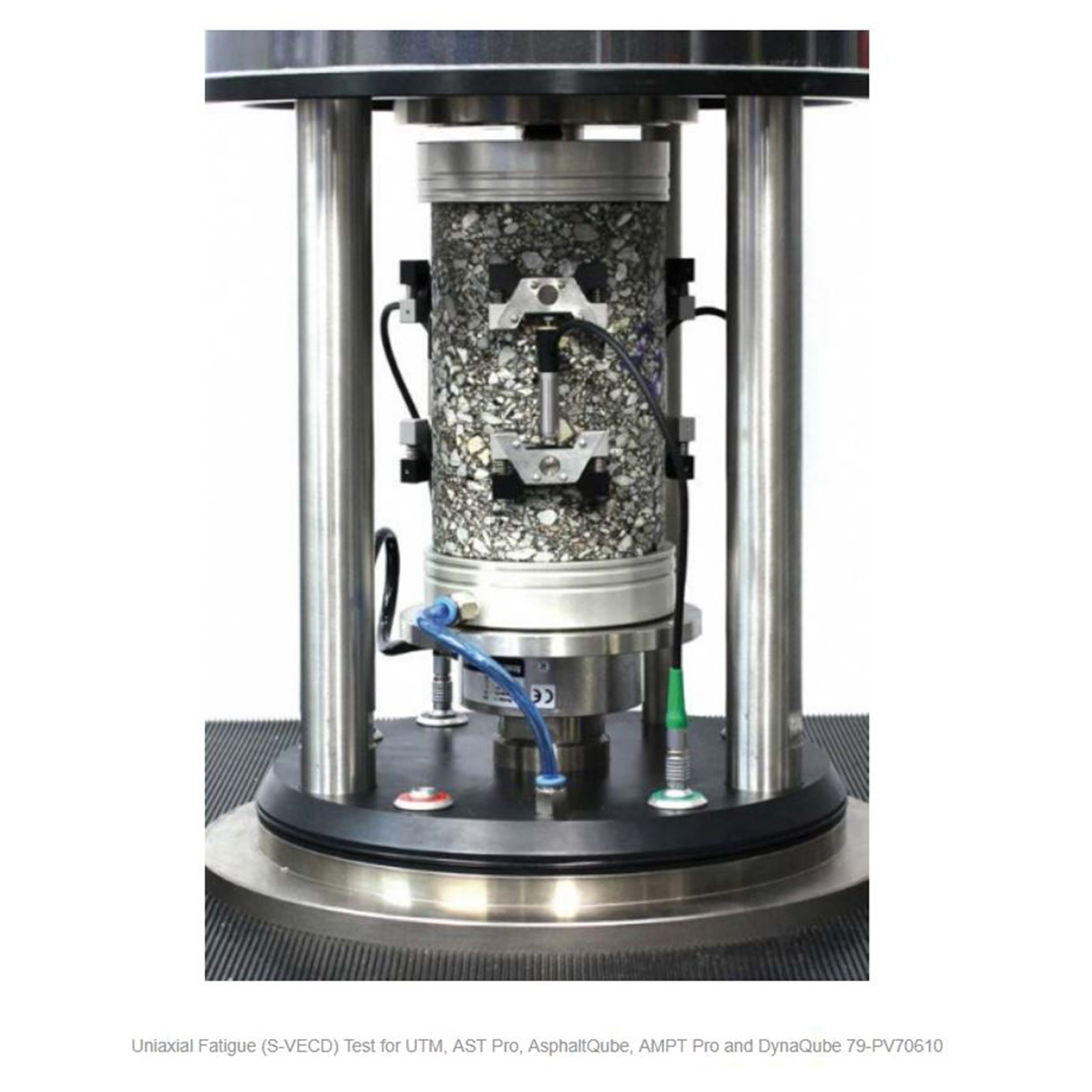

79-PV70610
Uniaxial Fatigue (S-VECD) tension kit to AASHTO TP107 / S-VECD for AST Pro, AsphaltQube, AMPT Pro and AMPTQube

79-PV70619
Small Diameter (75 and 50 mm) tension kit to AASHTO TP107 / S-VECD for AST Pro, AsphaltQube, AMPT Pro and AMPTQube

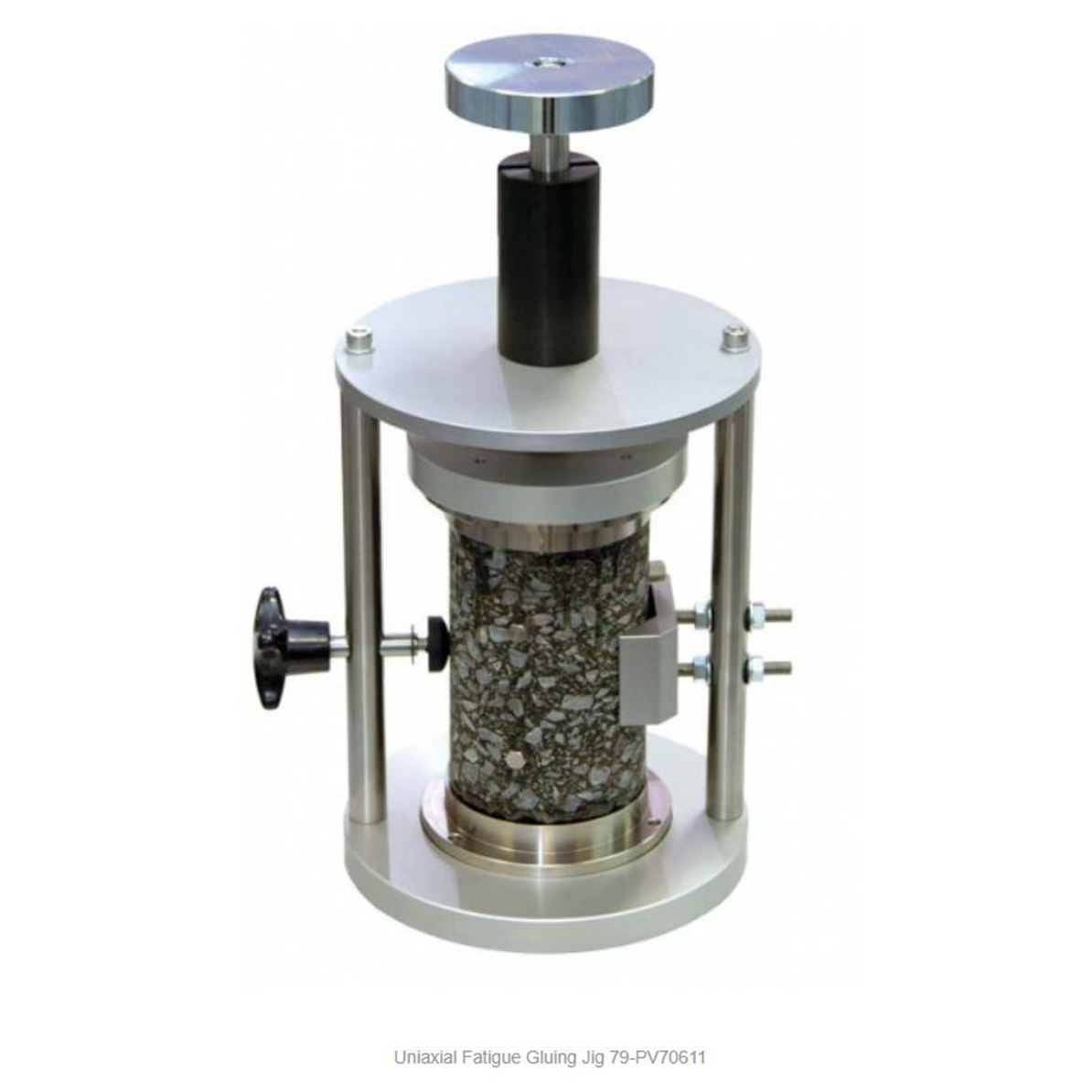

79-PV70611
Tension platen fixing jig for AMPT Pro and AMPTQube

Technical Specs

  • Specimen plate: 4.5 kg
  • Minimum required platens: 2
  • Specimen size (dia xh): 100 x 150 mm
  • Small diameter kit available for specimens with dia. 75 and 50 mm
