Description

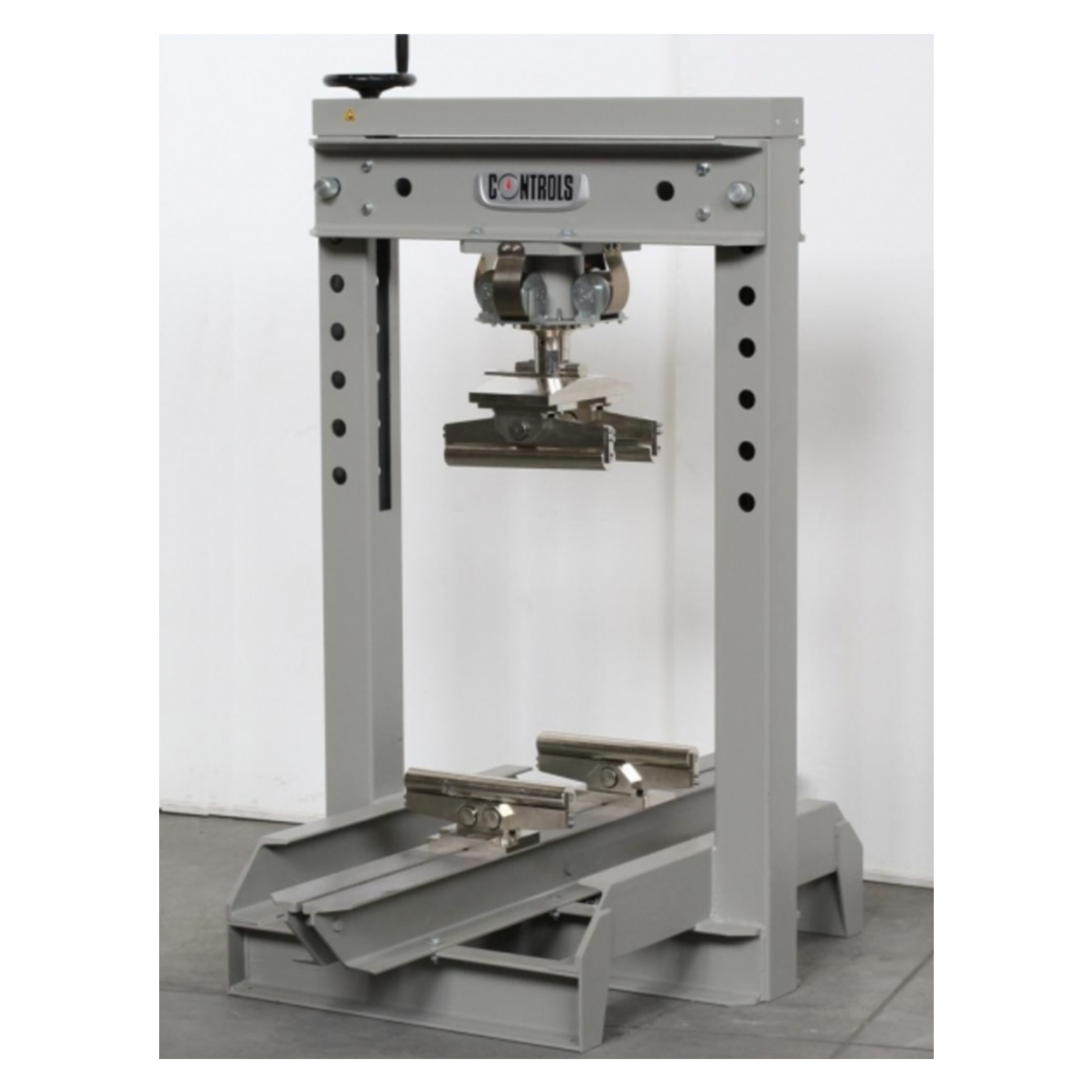

This versatile flexural frame has been designed to test either standard concrete beams or other concrete products as the roomy testing place can accommodate large specimens. Furthermore, the possibility of adjusting the vertical clearance up to 400-500 mm, using the appropriate accessory, permits the testing on various products including concrete pipes. It is proposed in two versions: with pressure transducer and with load cell which grant high accuracy for testing low strength specimens. Supplied complete with piston travel limit switch and connection kit to the control console. The frames don’t include the loading bearers that have to be ordered separately. See accessories.
Technical Specs
| Models | 50-C1400/FR | 50-C1401/FR | ||
| Max cap. kN | 150 | 150 | ||
| Load sensor | Pressure transducer | Load cell | ||
| Horizontal clearance [mm] | 660 | 660 | ||
| Max. vertical clearance [mm] | with C1400/8 | 483 | 443 | |
| with C1400/3 (upper punch) | 405 | 365 | ||
| with C1400/3 (upper bearer) | 510 | 470 | ||
| with C1200/4 and lower bearers included in C1400/3 | 458 | 418 | ||
| with C1400/7 | 600 | 560 | ||
| Distance between upper rollers (adjustable) mm | 100, 150, 200, or single roller | 100, 150, 200, or single roller | ||
| Distance between lower rollers (adjustable) mm | 100 – 1200 | 100-1200 | ||
| Piston travel mm | 110 | 110 | ||
| Overall dimensions (lxwxh) mm | 860x1400x1500 | 860x1400x1500 | ||
| Weight approx. kg | 224 | 224 | ||
Accessories
50-C1400/3
Accessory for testing flagstones and kerbs to EN 1339 and EN 1340, including two loading supports and central loading roller 620 mm long, 40 mm dia. and top loading swivel jointed pad 40 mm dia. Weight approx.: 23 kg.
50-C1400/8
Upper and lower roller assembly for center and third point test on concrete beams 100x100x400/500 mm and 150x150x600/750 mm. Rollers 40 mm dia., 300 mm long to EN 12390-5 and ASTM C78. C293 Weight approx.: 45 kg.
50-C1400/7
Set of upper platen, spherically seated and lower platen 165 mm dia., for compression tests. Weight approx. 15 kg.
50-C1400/9
Upper loading swivel joint 40 mm dia for flexural tests to EN 1340 on concrete kerb units. Suitable for frame series 50-C120x. Lower rollers not included.
50-C1200/4
Accessory to complete 50-C1400/3 to perform the third point and centre point flexure test to EN 12390-5, including two rollers 30 mm long, 40 mm dia. (one rmovable for centre point test; support plate with cylindrical seat (roller span 100, 150 and 200 mm). Lower rollers not included. Weight approx.: 23 kg
