DATALOG 8: Field Data acquisition unit

Main Features

  • In-built battery operated with rigid carrying case suitable for use on field
  • 6” touch screen colour graphic display
  • Separate display for battery status
  • 8 independent input channels
  • Display of readings and graphs in real time
  • Unlimited storage capacity with USB pen drive
  • Contemporaneous data sampling of all channels in accordance to the programmable logging mode

Links: Brochure | Data Sheet

SKU: 82-P9008/F Categories: , Tag:

Description

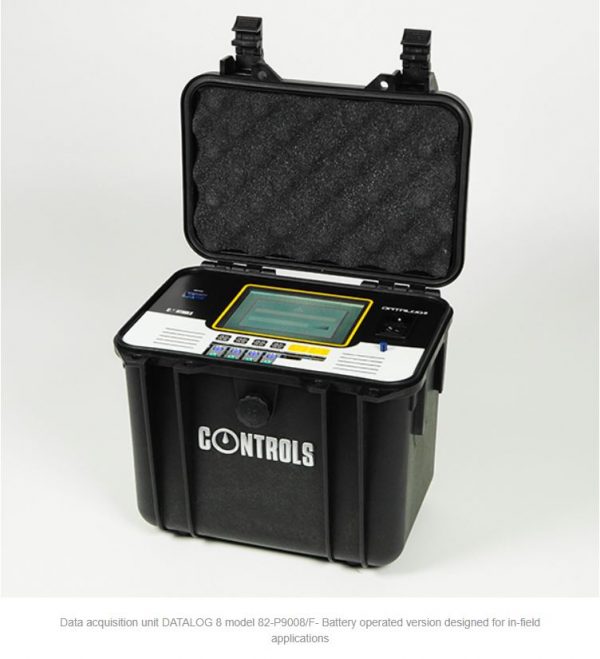

82-P9008/F DATALOG 8, 8 channels stand alone multipurpose data logger battery operated with rigid carrying case suitable for use on field.

DATALOG 8 is a stand alone data logger for general purpose acquisition, processing and data storage for laboratory and site applications.

Differently from the laboratory version, this model is housed inside a rigid carrying case with a long-life rechargeable battery. It is particularly suitable for field applications where mains power supply  is not available.

DATALOG 8 features a wide 6” touch screen colour graphic display and a separate display for battery status. The unit records and monitors in real time the measurements requested by different tests,  for example:

  • Plate bearing test apparatus (electronic versions)
  • Rock shear box apparatus (digital version model)
  • In-situ determination of stress, deformability and resistance of masonry walls with flat jacks
  • … and many other tests

Technical Specs

  • Number of channels: 8
  • Compatible with load cells, pressure transducers, strain gauges, LDT/LVDT/potentiometric displacement transducers
  • Communication port: LAN / Ethernet
  • Real resolution:131,000 points
  • Data storage on removable USB pen drive
  • Sampling rate: up to 10 readings per second per channel via USB (up to 500 readings per second per channel via LAN when connected to a PC)
  • Excitation (VEXC): from 1 V to 10 V for each couple of channels (up to 4)
  • Input signal : 0-10 V; 0-20 mA
  • Battery operated: internal rechargeable sealed battery 12V, 7.2 Ah and built-in battery charger 110-230 V, 50-60 Hz, 1 ph. Power cable is included
  • Battery life: 8 hours in continuous use
  • Dimensions approx lxdxh [mm]: 265x171x223
  • Weight approx. [kg]: 6

Accessories

82-P9008/ELT
Set of four cables for connecting load cells, pressure transducers, strain gauges, LDT / LVDT / potentiometric type displacement transducers to DATALOG 8 (82-P9008 and 82-P9008/F) and GEODATALOG 8 ( 30-WF6008)

82-P0398 (needed for strain gauge use)

Compensation device for up to 4 Wheatstone bridges with 1/4 or 1/2 bridge setup.

26-WF4645
LAN  HUB  with 8 ports

82-P9008/SOF
DATACOMM 2 data acquisition software and LAN cable for PC connection of DATALOG 8 (82-P9008 and 82-P9008/F).
– Up to 8 datalogger (total 64 channels) can be connected to a single PC creating a modular network (LAN hub is required)
– Free user setting of channel groups (nr. and  type of channels)
– Numerical and graphical display of the readings
– Fully customizable multi-diagrams function including multi-channels plotted against the same axes and / or one channel plotted in relation to another
– Data export ASCII format
– Possibility to save and recall different calibration files allowing quick transducers swapping
