Description
50-C1510/FR SIMPLEX – 200 kN cap. high rigidity flexural frame, complete with pressure transducer and connection kit for separate control console. Rollers not included.
50-C1511/FR SIMPLEX – 200 kN cap. high rigidity flexural frame, complete with load cell and connection kit for separate control console. Rollers not included.
This high stiffness flexural frame has been especially designed for displacement controlled testing on advanced construction materials, e.g. fiber reinforced concrete (FRC) and sprayed concrete.
These tests are significantly affected by the actual frame stiffness therefore the relevant international Standards state stiffness limits which are exceeded by this new model (better than 200 kN/mm).
This remarkable result comes from the frame sections but it is also derived from the particular layout which keeps the specimen aligned with the frame crossbeams maximizing structural rigidity.
The new layout also allows easier frontal specimen loading and positioning.
The horizontal daylight accommodates large specimens (slab, flagstones), concrete beams and kerbs long up to 650 mm.
Two models are available, either with pressure transducer or with load cell, both fitted with piston travel limit switch and connection kit to separate control console.
Technical Specs
| Models | 50-C1510/FR | 50-C1511/FR | |
| SIMPLEX | |||
| Max cap. kN | 200 | 200 | |
| Load sensor | Pressure Transducer | Load cell | |
| Horizontal clearance [mm] | 720 | 720 | |
| Max. vertical clearance [mm]* | with 50-C1500/1 (4 points) | 210 | 210 |
| with 50-C1500/1 (3 points) | 304 | 304 | |
| with 50-C1500/2 | 225 | 225 | |
| with 50-C1500/2 + 50-C1500/3 | 290 | 290 | |
| with 50-C1500/2 + 50-C1500/4 | 165 | 165 | |
| with 50-C1500/7 | 445 | 445 | |
| Distance between upper rollers (adjustable) mm | From 100 to 200, or single roller | From 100 to 200, or single roller | |
| Distance between lower rollers (adjustable) mm | From 150 to 600 | From 150 to 600 | |
| Piston travel mm | 130 | 130 | |
| Overall dimensions (lxwxh) mm | 956 x 496 x 1188 | 956 x 496 x 1188 | |
| Weight approx. kg | 235 | 240 | |
* The vertical daylight can be reduced by using the distance pieces already included useful to reduce the daylight by: 50mm and 100mm. Additional distance pieces are available as Accessories.
Accessories
50-C1500/1
Upper and lower roller assembly for centre and third point test of concrete beams up to 200mm height, conforming to EN 12390-5 and ASTM C78, C1609, C1018, EN 14488-3, EN 14651.
Bearers dimensions: 30 mm dia. x 210 mm long
Weight approx: 40 kg
50-C1500/11
Same as above but 30 mm dia x 310 mm length.
50-C1500/2
Set of one upper and two lower roller assembly for testing paving flags, conforming to EN 1339
Bearers dimensions: 40 mm dia. x 620 mm long
Weight approx: 45 kg
50-C1500/3
Swivel jointed loading pad for testing kerbs, conforming to EN 1340. To be used with support bearers of 50-C1500/2.
Weight approx: 5 kg
50-C1500/4
Upper loading bearers to perform the third point and centre point flexure test to EN 12390-5, including two rollers 210 mm long, 40 mm diameter. To be used with support bearers of 50-C1500/2
Weight approx.: 23 kg
50-C1500/12
Same as above but 40 mm dia. x 310 mm bearers
50-C1500/5
Auxiliary testing frame for the measurement of deflection of FRC beams to EN 14488-3, 14651, ASTM C1609.
50-C1500/6
Accessory for testing sprayed concrete slab to EN 14488-5. Including supporting square base and spherically seated loading element. To be completed with displacement transducers 50-C1500/9 and 50-C1500/8.
Weight approx: 100 kg
50-C1500/7
Set of lower platen and upper platen spherically seated, 165 mm dia., for compression tests on small and low strength specimens.
Weight approx: 19 kg
50-C1500/8
Displacement transducer with 50mm travel for reading displacement of sprayed concrete slab centre under concentrated load.
50-C1500/9
100mm displacement transducer for measuring the piston travel. Complete with attachments.
Weight approx: 1 kg
50-C1500/50
Distance piece 50mm thickness for flexure frame
50-C1500/80
Distance piece 80mm thickness for flexure frame
50-C1500/R
Rulers with graduation in inches
Additional Information
TEST SETS
Energy absorption test on slabs
50-C1511/FR Frame 200 kN cap.
50-C1500/6 Accessory for testing sprayed concrete slab 600 x 600 x 100 mm to EN 14488-5. Including supporting square base and spherically seated loading element.
50-C1500/9 100mm piston travel displacement transducer
50-C1500/8 50 mm central slab deflection displacement transducer
Measurement of beam deflection and thougness
50-C1511/FR Frame 200 kN cap.
50-C1500/1 Set of 2 supports and 2 loading rollers
50-C1500/5 Auxiliary testing frame for the measurement of deflection of beams
82-P0331/C High accuracy displacement transducer 10mm travel (2 PCS needed)
82-P0331/2 Electric mean device for displacement transducer 82-P0331/C
Note: not required for Automax Multitest control console

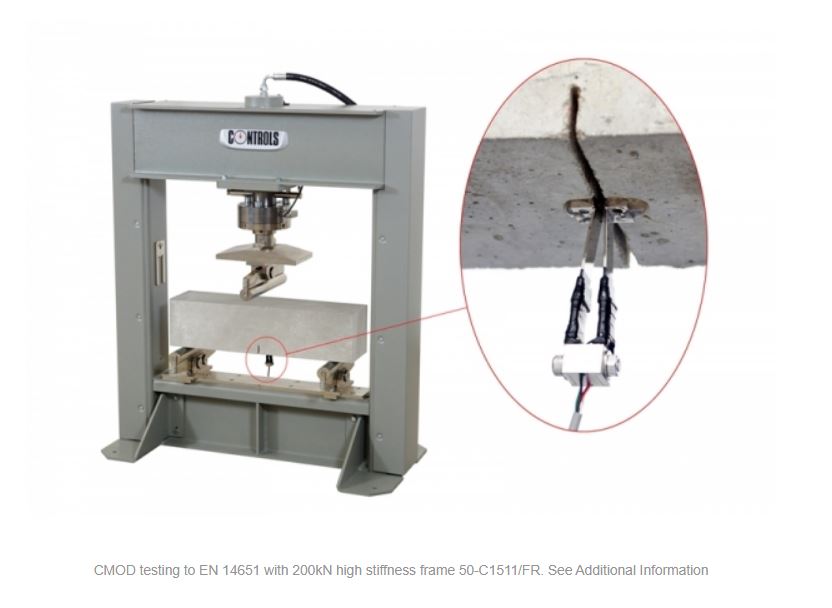

Displacement transducer for measurement of crack opening
50-C1511/FR Frame 200 kN cap.
50-C1500/1 Set of 2 supports and 2 loading rollers
82-P0331/E High precision displacement transducer to measure Crack Tip Opening Displacement (CTOD) and Crack Mouth Opening Displacement (CMOD)
Up-grading
(To be specified at time of order: these items has to be factory installed.)
Special calibration procedure
The above upgrading is suitable if the frame is connected to automatic testing machines or control consoles.
50-C0050/CAL
Special calibration of compression testers assuring Class 1 (EN) and Class A (ASTM), from 1% to full load range. Suitable for models fitted with load cell.
50-C0050/CAL5
Special calibration of compression testers assuring Class 1 (EN) and Class A (ASTM), from 5% to full load range. Suitable for models fitted with pressure transducer.
Traceable certificate of surface hardness
50-L0050/HRD
Supply of the compression deice model 50-C1500/7 complete with traceable certificate of hardness of 165 mm dia. platen surfaces
