Description
80-B0163/C Asphalt indentation penetrometer.
Introduction
The Asphalt Indentometer is one of the most important testing machines for mastic asphalt and rolled asphalt, and it’s included in the required test methods for EN 13108-6 CE Marking of mastic asphalt.
The test method is used for determining the depth of indentation of mastic and rolled asphalt, when force is applied via a cylindrical indentor pin with a circular flat-ended base. The maximum nominal size of aggregates in the mix is less or equal to 16mm. The test can be applied both on 70mm approx. cubes or Marshall samples (the steel base plate for Marshall samples is included).
Description
The new Controls model incorporates some improved features increasing the user-friendliness and the operability of the machine, like the new weight positioning system, allowing in a very user-friendly and precise method to pass from unload to preload phase, then to load phase without the need to add/remove weights from the structure, the four-columns frame structure, granting a precise weight positioning, the piston position indicator, making easier the adaptation of the penetrometer to different height samples (70mm cubes, Marshall specimens) and the water drain facility at the end of the test.
Technical Specs
The asphalt indentation penetrometer is supplied with a stainless steel water bath, 500 N weights, interchangeable piston 1 and 5 cm2, 30 x 0.01 mm dial gauge, steel plate with dial gauge holder, calibration cylinder to EN 12697-20, complete with certificate. A range of accessories to create 70 mm mastic asphalt cubes and a water temperature controller are available including the Digital immersion heater-agitator 86-D1408/D to heat water at the testing temperature conforming to Standard (22 or 40 °C). See accessories
- Dimensions (wxdxh): 430x530x955 mm (700 mm without weights)
- Weight approx.: 115 kg
Accessories
80-B0163/1
Cube mould 70.7 mm

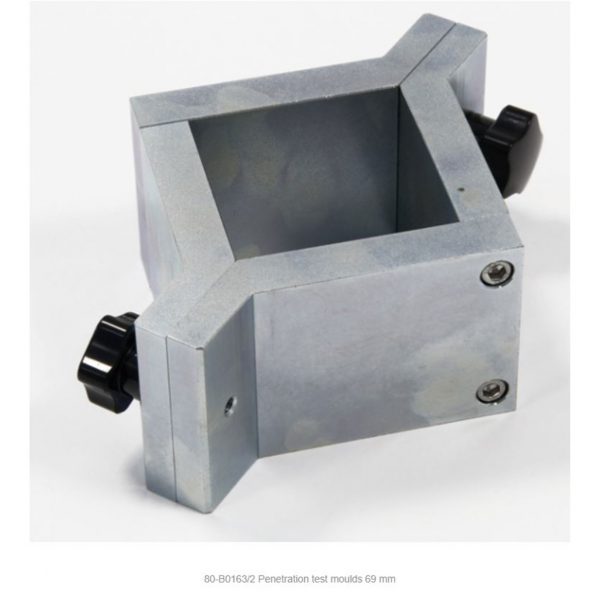

80-B0163/2
Penetration test mould 69 mm
86-D1408/D
Digital immersion heater-agitator
