Main Features
- Brand new technology including the new revolutionary EmS actuator
- Easy and versatile with his fully integrated modular system, that includes a 15 kN capacity CEMA1 actuator
- Enhanced environmental cabinet that grants a wide temperature range with fast and accurate temperature control
- Easy-to-use and ergonomic testing system

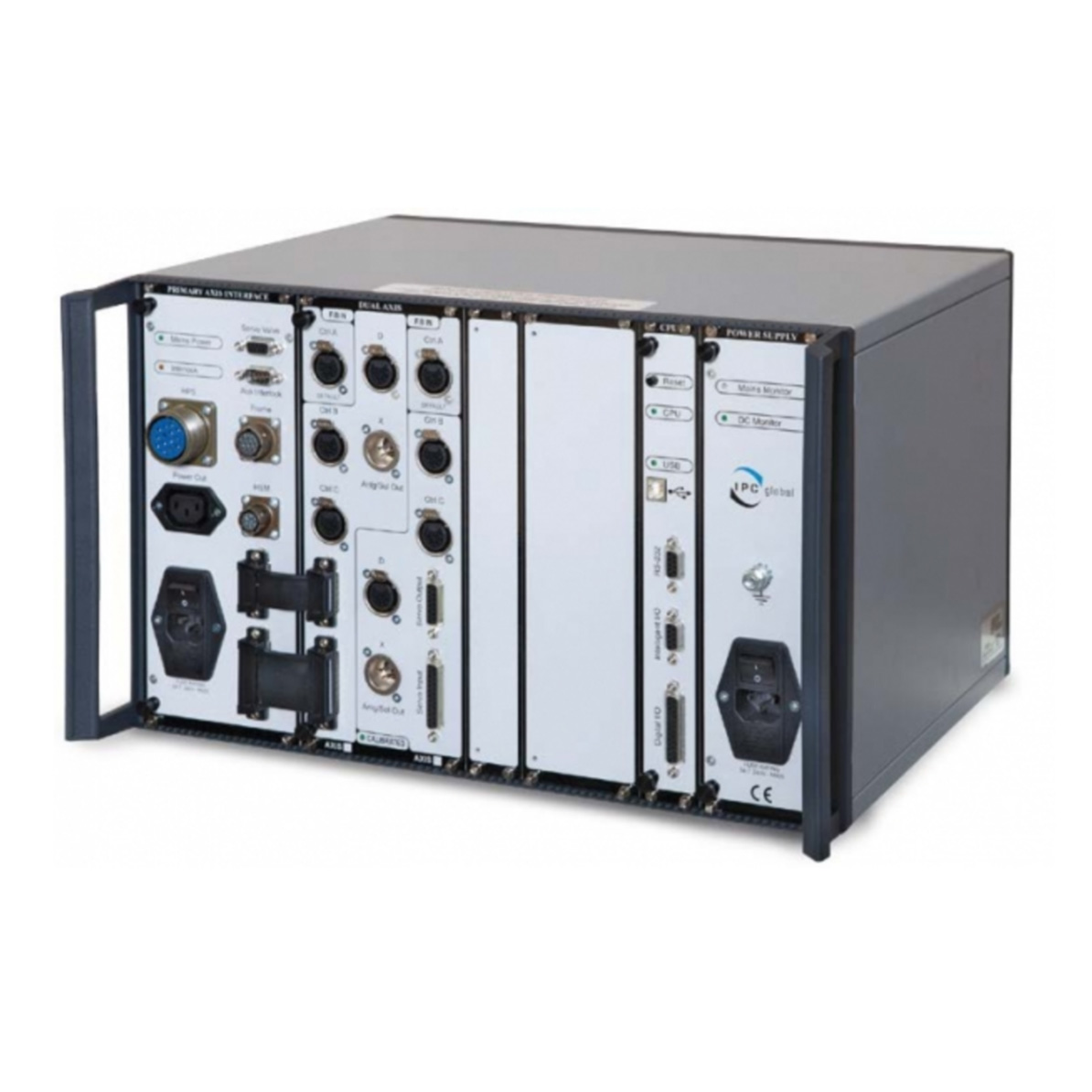

- Clarity in results with the Integrated Multi Axis Control System (IMACS)
- Fully integrated and very compact in design, a perfect solution for both static and mobile testing facilities
- Optional air compressor that comes integrated in the machine
- All-in-one touchscreen PC (optional)
EmS technology’s main benefits:
- Improved dynamic performance over servo-pneumatics
- Stand-alone with no need of compressed air supply
- Lower maintenance
- Robust and durable giving a more resilient solution
- Compact design requiring, in general, a smaller footprint
- Easy to use
Description

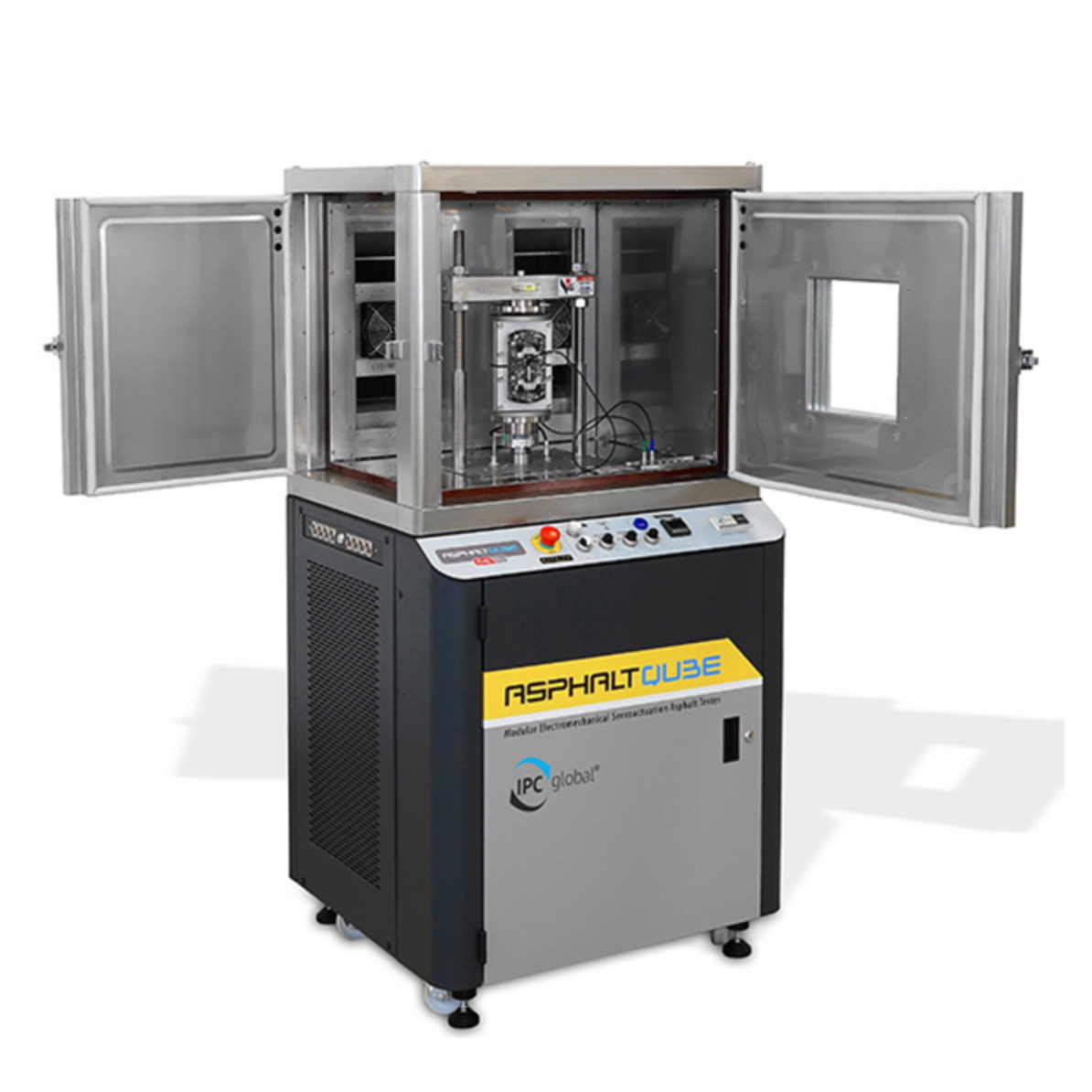

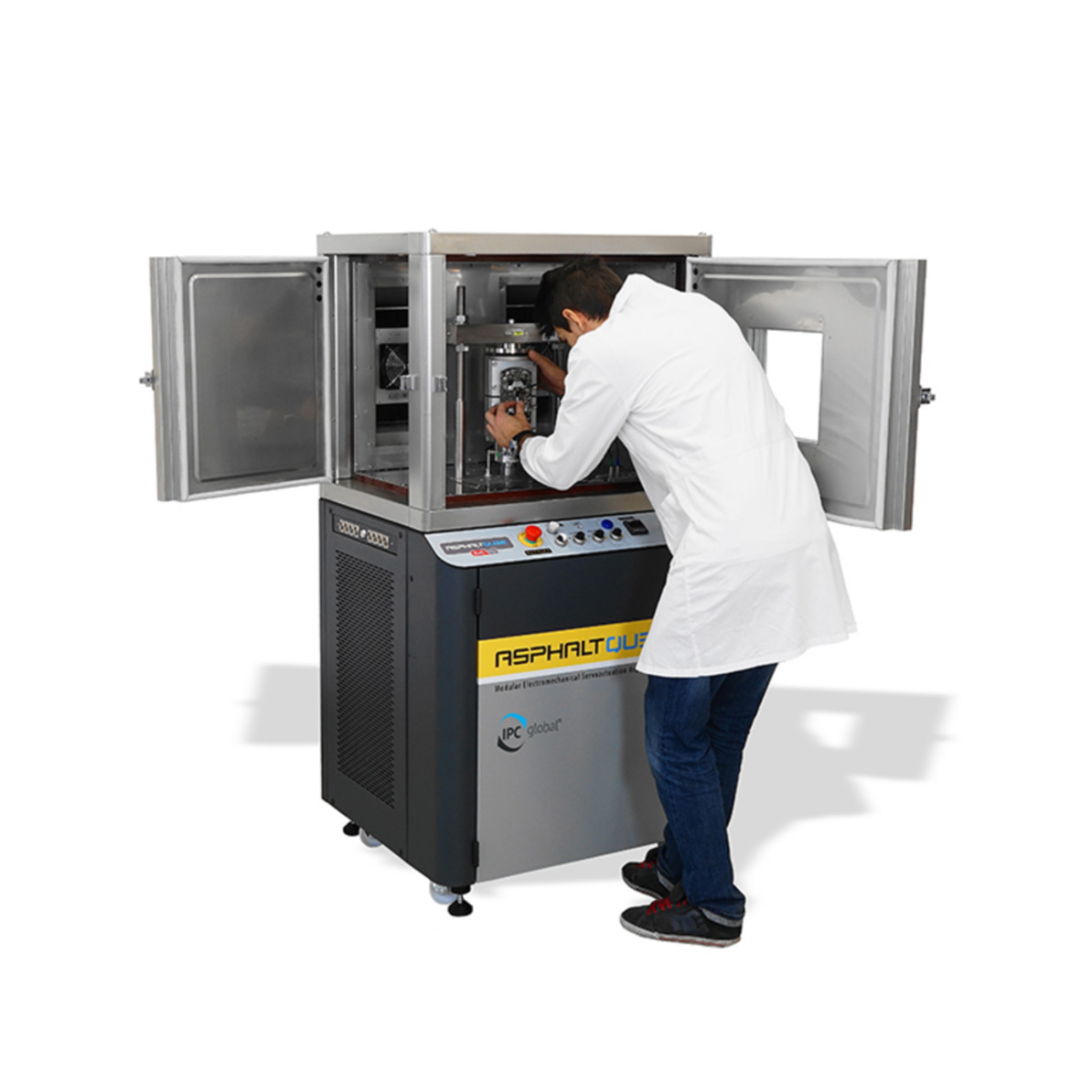

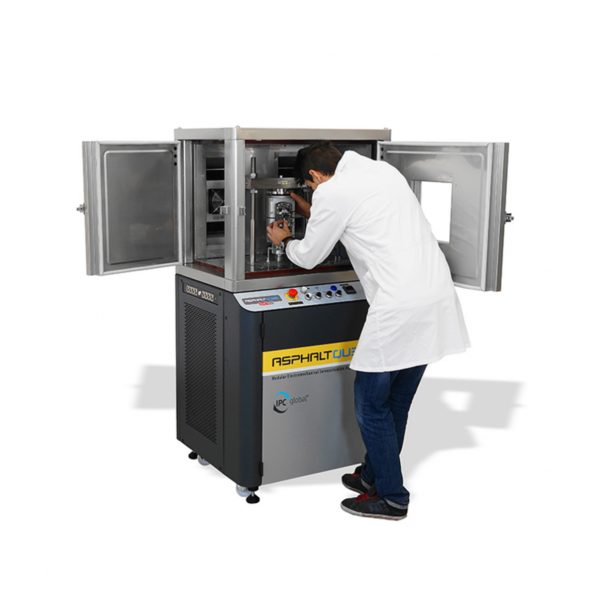

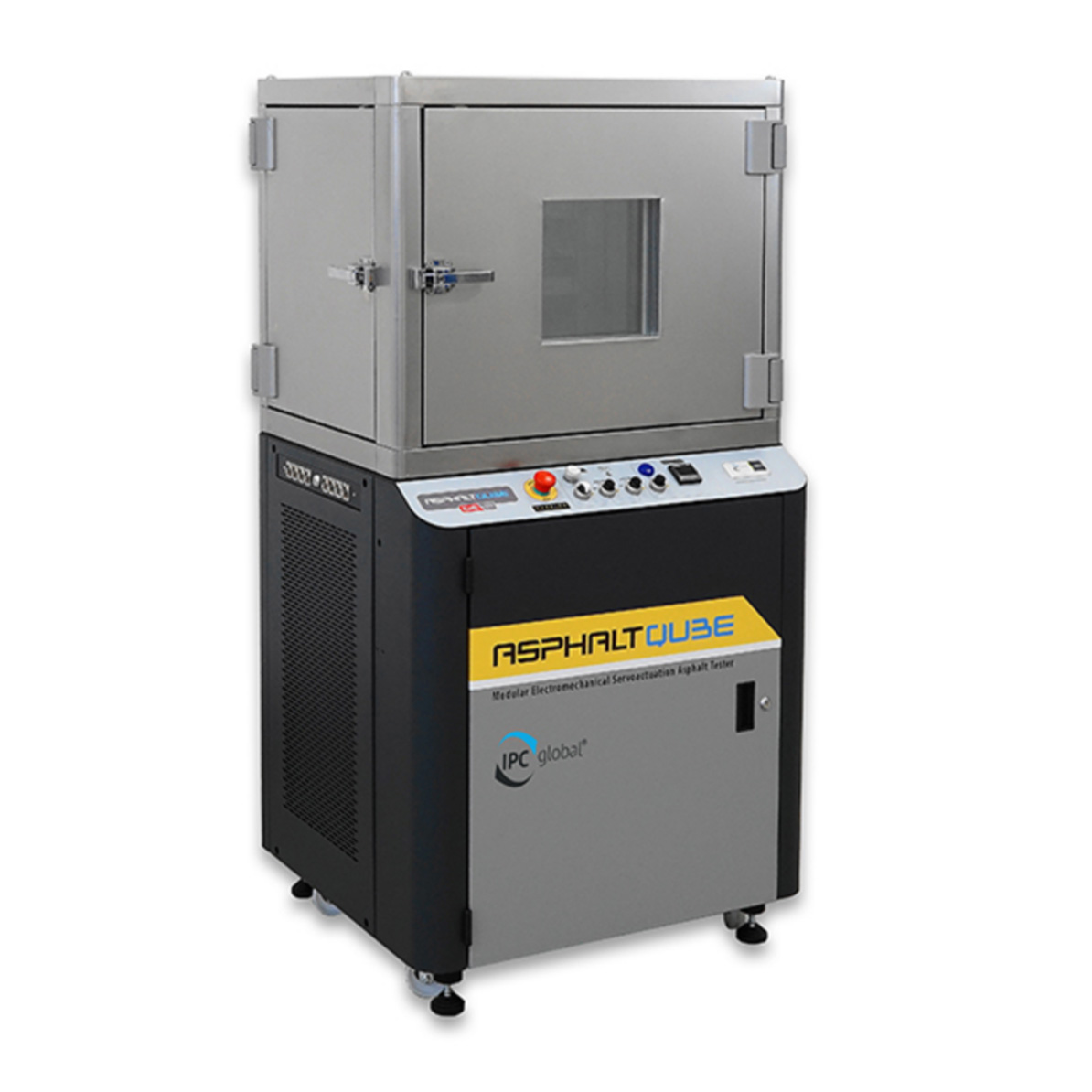

AsphaltQube is a fully integrated standard testing system based on the revolutionary EmS Electro-mechanical Servoactuated technology, suitable for QC / QA tests.
Now you can perform the most common asphalt standards in one compact, modular, easy to use machine.
The flexible system allows you to perform the test with AMPTQube (permanent deformation, cyclic compression, indirect tensile stiffness, indirect tensile fatigue, crack propagation, direct tension-compression, dynamic / complex modulus) plus triaxial compression, four-point and two -point stiffness and fatigue flexural tests.
Technical Specs
- Load capacity: Static 10 kN, Dynamic 15 kN
- Frequency range: 0.01 to 70 Hz sinusoidal loading
- Actuator stroke: 30 mm (+/- 15 mm stroke)
- Actuator type: E-Mech electro-mechanical actuator CEMA1
- Specimen size (dia x H): 100 x 150 nominally, 50 x 135, 38/50 x 110mm
- Noise level less than 70 db at 2m

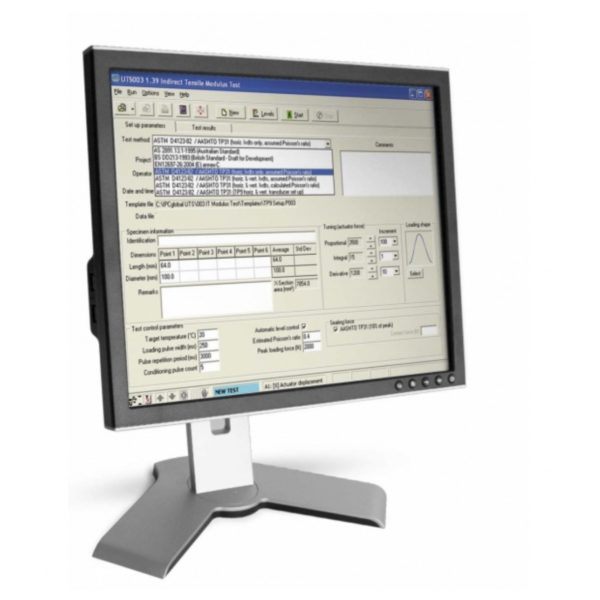

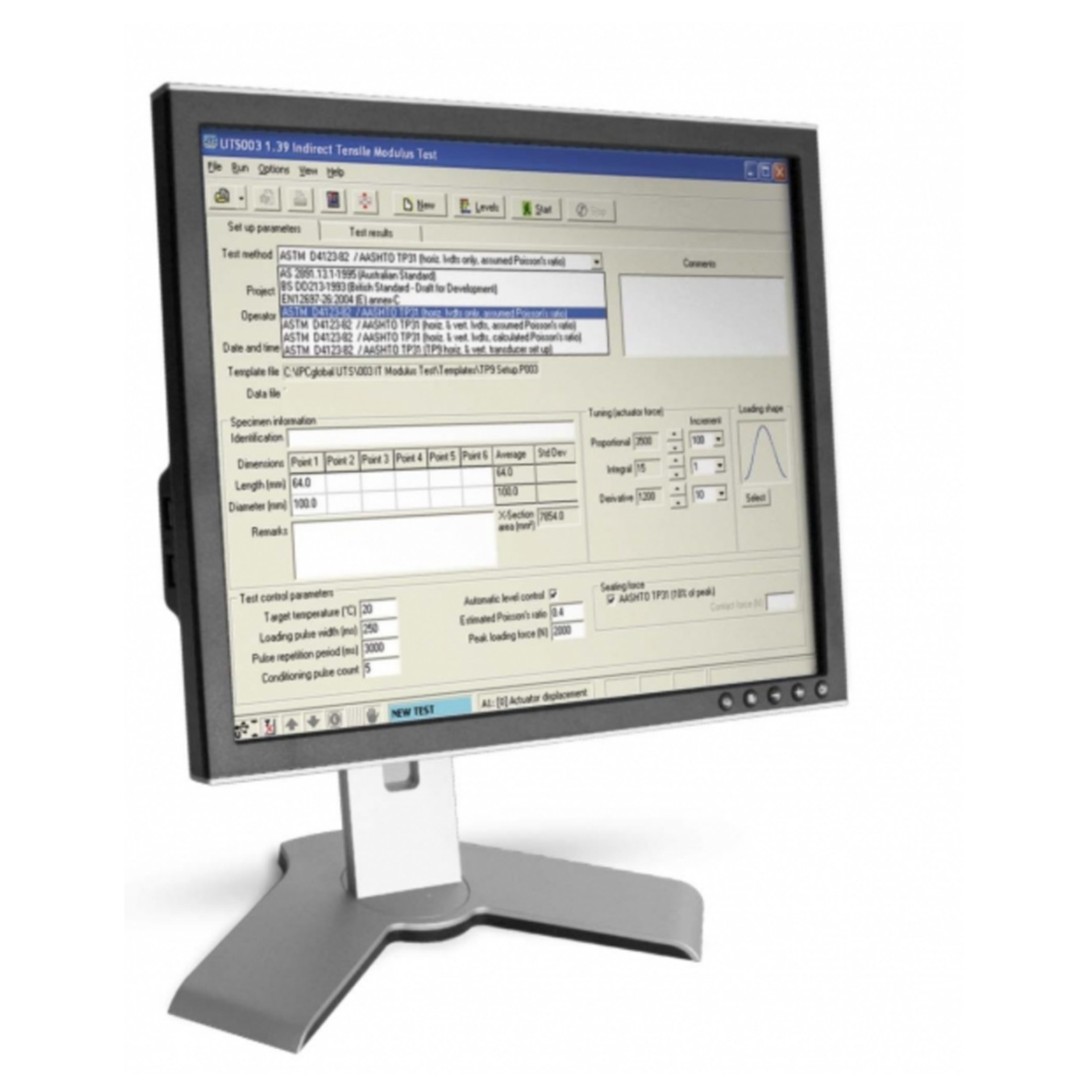

- Computer control: integrated all-in-one PC touch screen (optional)
- Air compressor and dryer: low noise, integrated, automated-on-demand (optional)
- Dimensions (H x W x D): 1630 x 830 x 830 mm with environmental chamber
- Weight :: 250kg
Transducers
- Load cell: low profile pancake type
- Built-in LVDT actuator: 30 mm stroke
- Plug-and-Play: up to 8 channels
Services
- Power without air compressor: 230 V, 50 Hz, single phase, 9 A; 110 V, 60 Hz, single phase, 18 A
- Power with air compressor: 230 V, 50 Hz, single phase, 11 A; 110 V, 60 Hz, single phase, 22 A
- Air: Clean dry air at 450-800 kPa; 2 L / sec (optional integrated air compressor available)
Downloads
Ordering Information
| 79-PV72Q02/I2 | AsphaltQube, modular electro-mechanically operated asphalt tester with inbuilt IMACS2 controller. 208-230V/50-60Hz/1ph |
Accessories
| 79-PV71001 | AMPT Pro compressor assembly, Max air flow 137 L/min, 8 Bar cap., 5 litres tank, with air dryer with molecular sever 230V/50Hz/1ph |
| 79-PV72001 | AsphaltQube/AST Pro Reaction Frame Kit |
| 79-PV72002 | AsphaltQube – All-in-One Touch Screen PC Assembly |
| 79-PV72E12 | AsphaltQube Environmental chamber, +2°C to+60°C. |
| 79-PV72E22 | AsphaltQube Extended Range Environmental chamber, -10°C to +60°C. Complete with inbuilt water cooling system with recirculator |
