Description
81-B0100/D

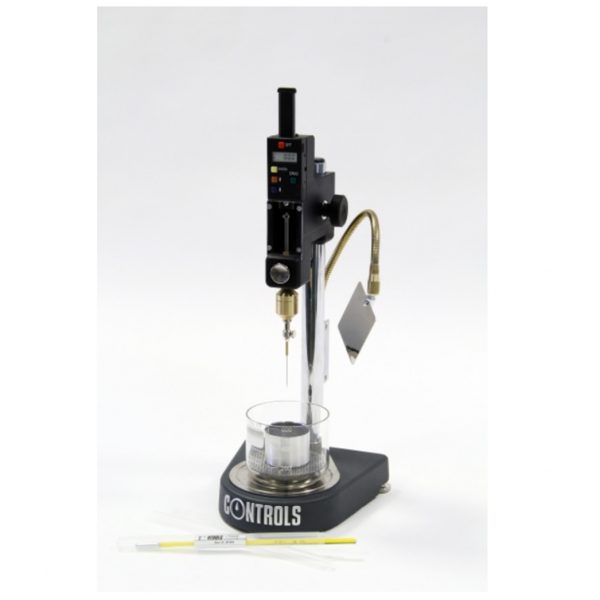

Digital standard penetrometer complete with micrometer vertical adjustment
81-B0101/E
Digital electronic semi-automatic penetrometer complete with micrometer vertical adjustment and
adjustable electronic timer of the fall time, according to EN 1426, ASTM D5, AASHTO T49. 230 V,
50-60 Hz, 1 ph.
Cast iron base with levelling screws, digital penetration measurement gauge 0.01 mm precision, release button, automatic zeroing. Semi-automatic model 81-B0101/E is supplied complete with automatic controller, which automatically releases the plunger by a magnetic device, complete with micrometer vertical adjustment and adjustable electronic timer of the fall time, according to EN 1426, ASTM D5, AASHTO T49. Both models are fit with a micrometer vertical adjustment device. Needles, cups, thermometer and mirror are not included and have to be ordered separately. See accessories.
The instrument is provided with lead screw gear arrangement, Levelling screws, Spirit level. The head can be clamped at any desired height. A rack and pinion and pointer assemble provides fine adjustment of needle or cone tip to sample. It incorporates a clutch mechanism. Which makes reading of penetration and subsequent resetting a simple and accurate operation. The electronic timer allows the user to set up and read the fall time of the needle during testing.
The test should be performed placing the penetration cup in thermostatically controlled water, using a suitable device as our water bath with thermoregulator and immersed probe (see accessories).
Technical Specs
- Weight approx.: 8.5 kg
Accessories
Penetrometer needles
81-B0113
Penetration needle 2.5 ± 0.05 g. made from hardened polished stainless steel. Univocally traceable by engraved serial number. Conforming to ASTM D5 and EN 1426. Supplied with conformity certificate.
81-B0113/A
Penetration needle 2.5 ± 0.05 g. made from hardened polished stainless steel. Univocally traceable by engraved serial number. Conforming to ASTM D5 and EN 1426. Supplied with conformity certificate. Set of 3.
81-B0113/1
Verified penetrometer needle 2.5 ± 0.5 g. Fully hardened, tempered and polished stainless steel. Conforming to ASTM D5 and EN 1426. Supplied complete with official UKAS Verification Certificate
Sample cups
81-B0110/A
Sample cup, dia. 55×35 mm. Set of 6 pieces
81-B0110/B
Sample cup, dia. 70×45 mm. Set of 6 pieces
81-B0110/S
Stainless steel sample cup, dia. 55×35 mm.
Mirror
81-B0100/1
Mirror with articulate holder. To make easy the surface contact between the needle and the sample.
Glass transfer dish
81-B0109
Glass transfer dish with support, 100 mm dia. x 100 mm high
Thermometers
82-B0100/6
IP 38 C Thermometer, range from +23 to +26°C, 0.1°C graduation
82-B0125/2
EN thermometer, range from +19 to +27°C range, 0.1°C graduation, type ASTM 17C
82-B0122/4
EN thermometer, range from -8 to +32°C range, 0.1°C graduation, type ASTM 63C
Water bath with digital thermoregulator and immersed PT100 probe
81-PV0102
Water bath for bitumen penetration tests, including heating controller and cooling coil, immersion temperature probe, internal support grid and connections to mains water or water chiller. Temperature range 25 to 60 ± 0.1 °C.
230 V, 50-60 Hz, 1 ph
81-PV0102/Z
As above but 110 V, 60 Hz, 1 ph
Simple water bath
81-PV0102/A
Water bath for penetration test complete with internal water coil, support for specimen and water connections. To be used with external chiller series 81-PV0102/CHx
Water chiller
81-PV0102/CH
Water chiller, 7.5 l capacity, with electronic temperature controller with ± 0.1 °C accuracy and fluid temperature range between 5 and 30°C. Suitable for chilling penetrometer water baths or temperature controlled setting time tests.
230 V, 50-60 Hz, 1 ph
Power consumption: 350 W
Overall dimensions: 415X300X420mm
Weight approx.: 15 kg
81-PV0102/CHZ
As above but 110 V, 60 Hz, 1 ph
Standard penetration cone ASTM D217
81-B0115
Standard penetration cone conforming to ASTM D217 and EN 13880-2
