Description

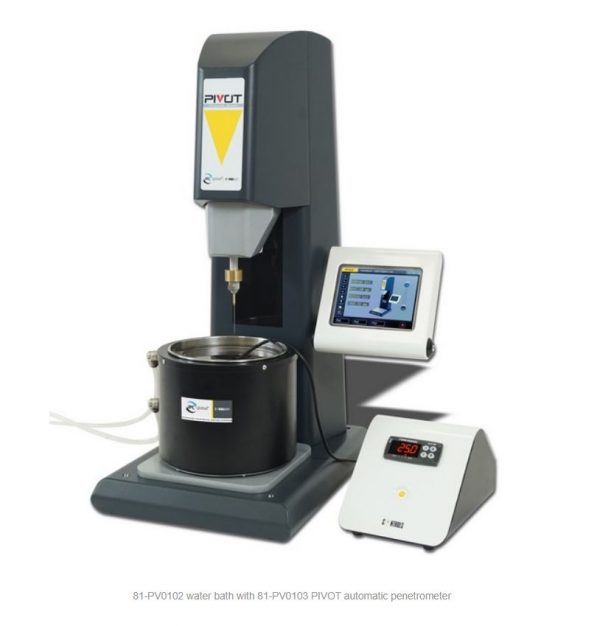

81-PV0102
Water bath for penetration tests, including heating controller and cooling coil, immersion temperature probe, internal support grid and connections to mains water or water chiller. Temperature range 25 to 60 ± 0.1 °C. 230 V, 50-60 Hz, 1 ph
This water bath is specifically designed for penetration tests of bituminous materials.
It includes heating elements whose effect is compensated by a cooling coil that can be connected to mains water, with minimum water consumption.
The digital thermoregulator, with 0.1°C accuracy, features a PT100 immersion probe which can be placed close to the test specimen or anywhere inside the bath.
This grants a highly accurate PID control, overcoming traditional systems in which the temperature is measured in an external water chiller, therefore not representing the real bath temperature.
Penetration tests are typically performed at 25°C, however special test conditions may occur, in which case the cooling coil can be connected to an external chiller (see accessories) for bath temperatures down to 5°C ± 0.1 °C.
The chiller is also useful in cases of very hot environments in which mains water temperature is higher than 25°C.
See our Penetrometer, Fully Automatic model – PIVOT or our Standard Penetrometers
Technical Specs
- Capacity: 2.0 l
- Temperature range without chiller: 25 to 60 °C
- Temperature range with chiller: 5 to 60 °C
- Temperature accuracy: 0.1 °C
- Temperature control: PID with measuring PT100 probe immersed in the water bath
- Power consumption: 200 W
- Dimensions: water bath
- Weight approx.: 4 Kg
Up-grading
230 V, 50-60 Hz, 1 ph
